Home screen

The home screen is a screen where you perform a scan.

When the ScanSnap and a computer are connected, one of the following screens appears.

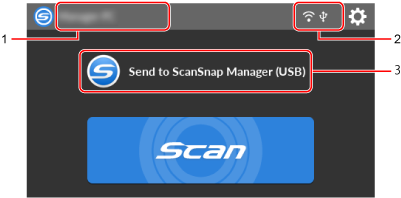

• When the ScanSnap and the computer are connected via a USB cable

• When the ScanSnap and a computer are connected via wireless LAN

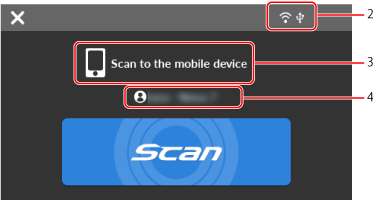

When the ScanSnap and a mobile device are connected, the following screen appears.

Displays the [Selecting a User] screen.

In the [Selecting a User] screen, user names of the computers that have been connected to the ScanSnap before are listed. Selecting a user name in the list can change the current computer to the computer that you want to connect the ScanSnap to.

is displayed in the following cases:

• The options below are selected in the [Settings] screen on the touch panel
  • [Selected user] is selected for [Display of profiles] in the [Scanner settings] screen
  • [Access point connection] or [Direct connection] is selected for [Wi-Fi connect mode] in the [Wi-Fi settings] screen
• Two or more history records of computers that have been connected to the ScanSnap before exist

User name (1)

Displays a user name that is connected with the ScanSnap.

A user name is displayed in the following cases:

• The options below are selected in the [Settings] screen on the touch panel
  • [Selected user] is selected for [Display of profiles] in the [Scanner settings] screen
  • [Access point connection] or [Direct connection] is selected for [Wi-Fi connect mode] in the [Wi-Fi settings] screen
• Two or more history records of computers that have been connected to the ScanSnap before exist

Connection status (2)

Displays the connection statuses of the ScanSnap.

Displays the signal status between a wireless access point and the ScanSnap in four levels.

When the ScanSnap is searching for a wireless access point or is not connected to a wireless access point, appears.

Appears when the ScanSnap and the computer are connected via a USB cable.

Appears when the Wi-Fi connect mode for the ScanSnap is set to Direct Connect mode which is not via a wireless access point.

When the ScanSnap cannot establish a connection to a wireless access point, the ScanSnap and the computer or mobile device can be connected directly via wireless LAN.

Displays the [Settings] screen. You can configure the settings for the ScanSnap.

When there is a maintenance notification, appears on .

Status (3)

Displays the status of a computer or mobile device that is connected to the ScanSnap.

Device name (4)

Displays a mobile device name when a device that is connected to the ScanSnap is a mobile device.

Disconnects the connection between the ScanSnap and the mobile device.

[Scan] button

Scanning starts.

When is displayed on the [Scan] button, scanning does not start. Follow the message that is displayed when you press to solve the problem.

[Settings] Screen

The [Settings] screen is the screen in which you can check the ScanSnap, wireless LAN, and maintenance information, and specify settings.

Returns to the home screen.

Displays the [Maintenance] screen.

The following operations can be performed in the [Maintenance] window.

• Specifying the setting to notify you when the scanner detects dirt on the glass which causes vertical streaks on scanned images
• Checking when to replace consumables
• Starting the cleaning operation for the feed rollers and eject rollers
• Updating the firmware to a newer version

In the following cases, appears on .

• When dirt on the glass is detected
• When the scanned page count exceeded the replacement cycle
• When the latest firmware is available

Displays the [Scanner settings] screen.

The following operations can be performed in the [Scanner settings] window.

• Checking the information on the ScanSnap, wireless LAN, or network
• Configuring the following settings
  • Name of the ScanSnap
  • Whether or not to display the results regarding the saving process of scanned images in a cloud service
  • Startup mode
  • Automatic power off
  • Method to display profiles
  • Language displayed on the touch panel
  • Type of USB operation
• Resetting the following settings
  • Settings other than [Display language] in the [Scanner settings] screen
  • Setting for the [Notify when the latest is available] checkbox in [Update firmware] in the [Maintenance] screen
  • Setting for the [Notify when glass is dirty] checkbox in [Dust detection] in the [Maintenance] screen

Displays the [Wi-Fi settings] screen.

The following operations can be performed in the [Wi-Fi settings] window.

• Switching the wireless LAN connect mode for connecting the ScanSnap to a computer or mobile device
• Modifying the settings for each connect mode
• Checking the information such as the wireless LAN connection status and the signal strength
• Resetting the wireless settings that are configured for the ScanSnap

When there is a device with the same IP address as that of the ScanSnap on the network, is displayed on .

The [Connecting Devices] screen is displayed.

Shows the information below which is necessary when connecting a new computer or a new mobile device.

• Scanner name
• IP address
• Network name (SSID)
• Security key

The displayed information varies depending on the connection method.

Displays the [Help] screen.

Shows the reference page on ScanSnap Help.
