Menu window

The following describes the Basic Menu as an example.

• Window name

  Displays [Basic Menu], [Extended Menu], or [Maintenance Menu].

• Tab

  Displays the [Basic] tab, [Extended] tab, and [Maintenance] tab.

  Displays the menu when you click on the tab.

• Button

  Displays another window when you click on a button.

  For details about the buttons displayed in each menu, refer to the following:

  • Basic Menu

  • Extended Menu

  • Maintenance Menu

• Destination scanner name

  Displays the name of the ScanSnap when the currently connected ScanSnap is iX1600, iX1500, iX1300, or iX100.

  Click the name of the ScanSnap to display a window on which you can change the ScanSnap you want to connect.

  ATTENTION

  If a USB cable is used to connect the ScanSnap, you cannot change the ScanSnap you want to connect.

• [Quit] button

  Closes the window.

Wireless Network Setup Wizard and Wireless Setup Tool

When you click a button in each menu, the Wireless Network Setup Wizard or Wireless Setup Tool is displayed.

Wireless Network Setup Wizard is started when you click in the Basic Menu.

Wireless Setup Tool refers to the window that appears when you click another button.

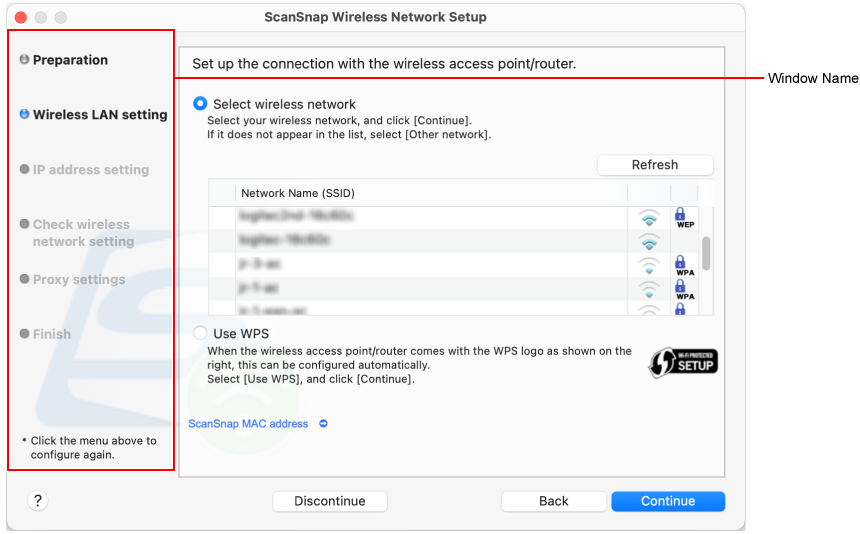

The following describes Wireless Network Setup Wizard ([Wireless LAN setting] screen (network list)) as an example.

In the left pane, the following information is displayed.

• For Wireless Network Setup Wizard

  Displays the window names in order of the wireless network setup.

  • When the wireless network setup is complete, "" appears.

    You can click on the window name to return to that window.

  • For the window that is currently displayed, "" appears.

• For Wireless Setup Tool

  Displays the name of the current window.
