Checking the Sheet Counter

The status on each consumable part can be viewed to determine when to replace the consumables.
The color of the counter changes to prompt replacement.
For brake roller and pick roller, the consumable counter turns light yellow when the page count after replacing the consumable reaches 95% of the value specified in [Life Counter Alarm Setting] of the Software Operation Panel, and turns yellow when it reaches 100%.
Ink counter color changes to yellow when the amount of remaining ink reaches below 33% (only displayed when the imprinter is installed).
For details about [Life Counter Alarm Setting] of the Software Operation Panel, refer to the Operator's Guide.
The standard replacement cycle is shown below, but it varies depending on the paper quality.

Name Part No. Suggested replacement cycle
BRAKE ROLLER PA03670-0001 200,000 sheets or one year
PICK ROLLER PA03670-0002 200,000 sheets or one year
PRINT CARTRIDGE CA00050-0262 4,000,000 characters or six months after opening

Check the sheet counter for the consumables in the following procedure.

  1. Confirm that the scanner is connected to the computer, then turn on the scanner.
  2. Open the [Software Operation Panel] window.
    • Windows XP/Windows Vista/Windows Server 2008/Windows 7
      Select [Start] menu [All Programs] [fi Series] [Software Operation Panel].
    • Windows Server 2012/Windows 8
      Right-click the Start screen, and select [All apps] on the app bar [fi Series] [Software Operation Panel].
    • Windows Server 2012 R2/Windows 8.1
      Select [↓] on the lower left side of the Start screen [Software Operation Panel] under [fi Series].
      To display [↓], move the mouse cursor.

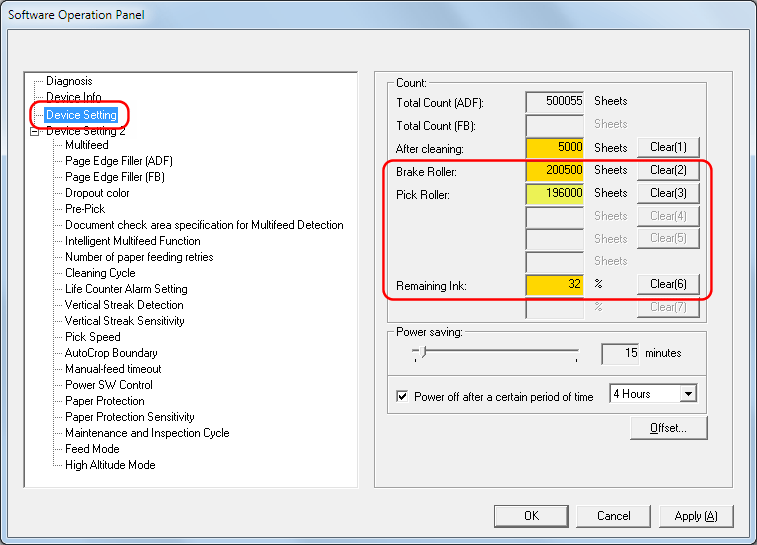

  3. From the listing on the left, select [Device Setting].
