Overview
How it works
Our flagship model scans more documents faster and offers greater connectivity for easier access to shared data from anywhere

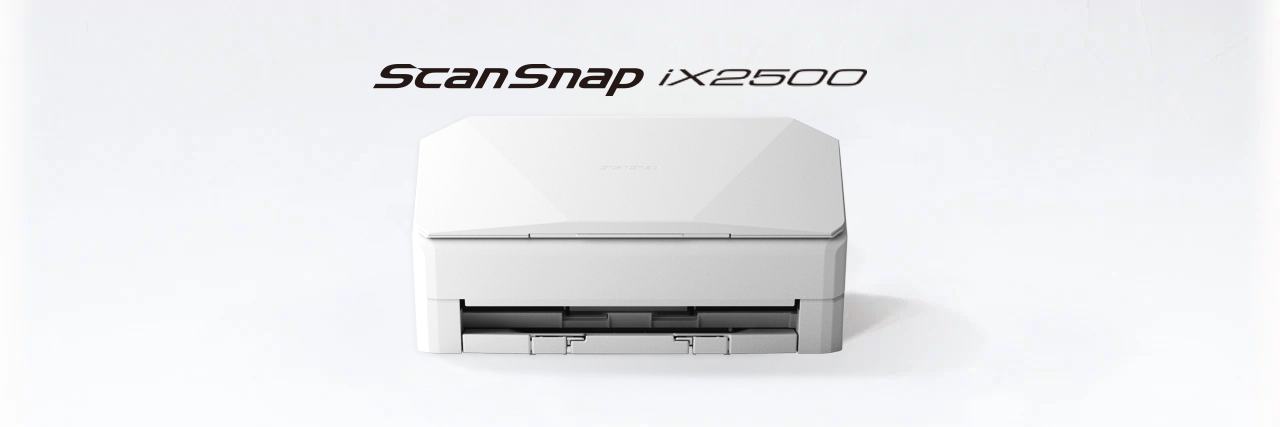

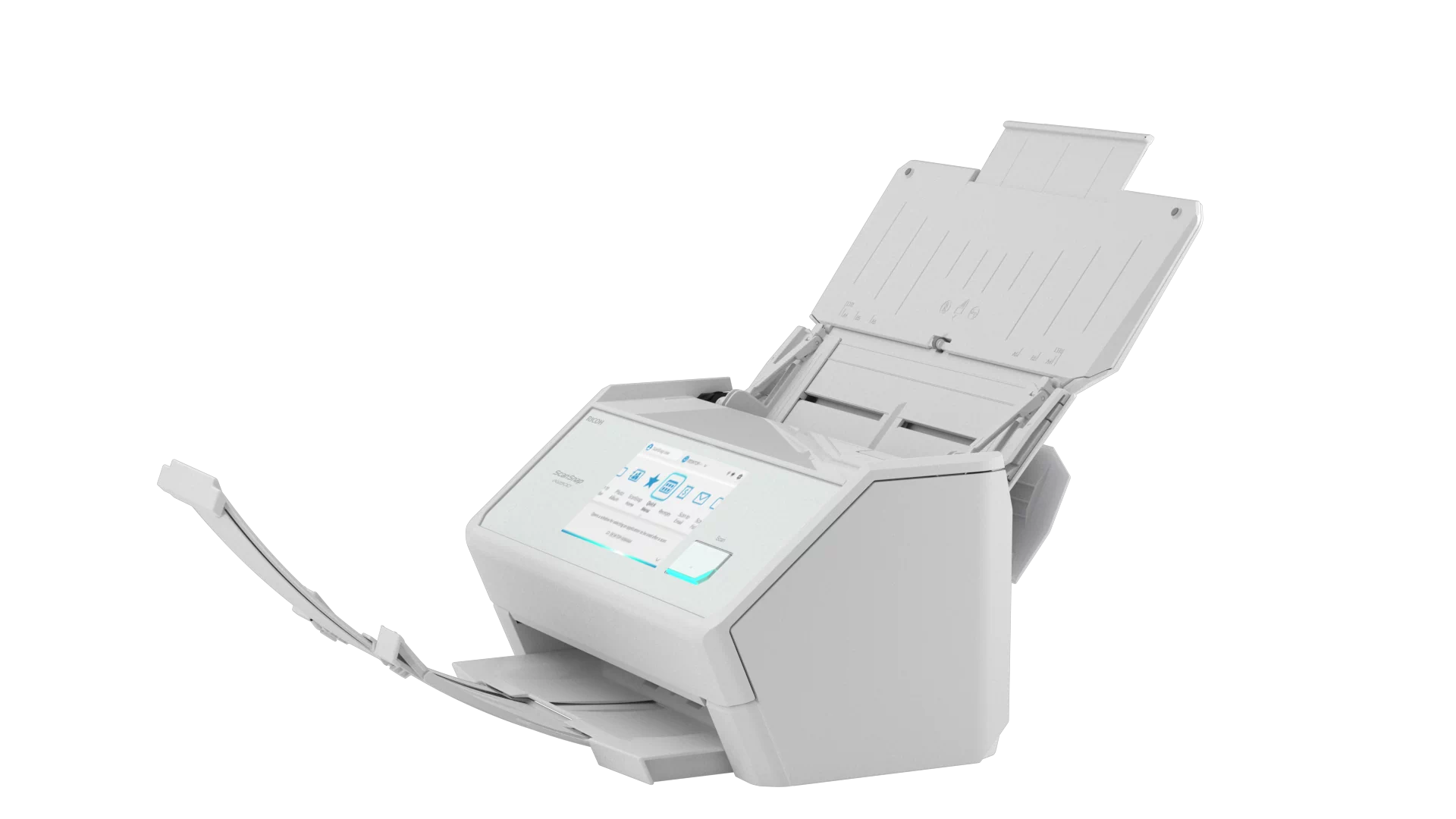

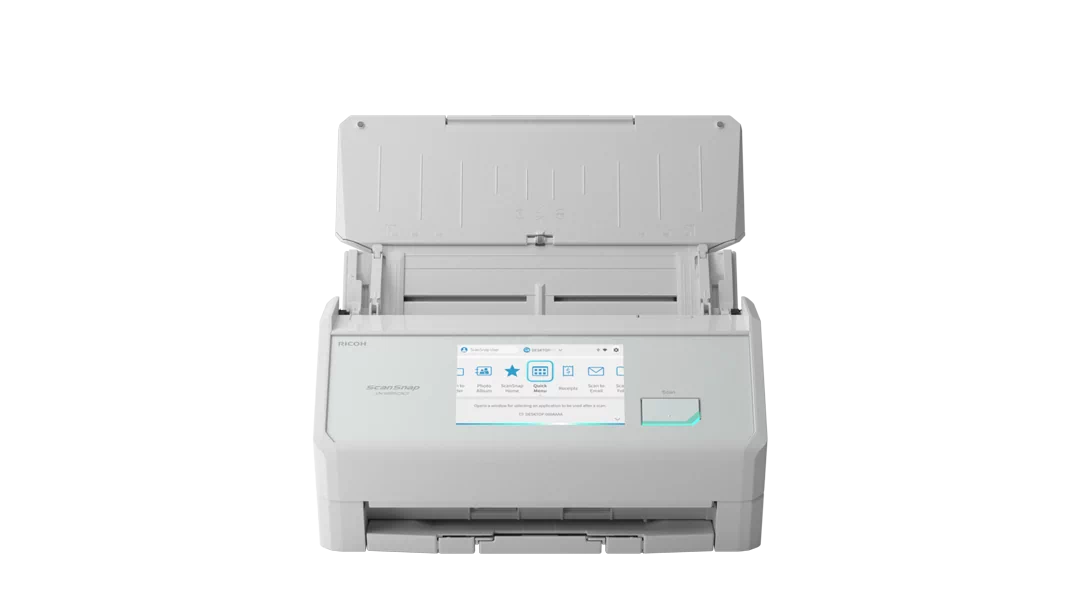

ScanSnap iX2500 is the evolved flagship model of the ScanSnap series, enabling scanning at higher speeds of 45 ppm/90 ipm (A4-size documents, color, 300 dpi). It comes with a large 5-inch touch screen to bridge the gap where the physical and digital meet. The device allows you to use your personalized settings anywhere, regardless of whether you are at home, the office, or a rental coworking space. It integrates seamlessly with digital services for utilizing scanned data and offers a user-friendly, stress-free experience.
- Intuitive 5-inch touch screen and smartphone-like usability
- Wi-Fi (2.4 / 5GHz*1) compatibility
- Secure connections with Wi-Fi 6/WPA3 support
- Speedy scans up to 45 ppm/90 ipm (A4-size documents, color, 300dpi)
- 100 sheets Automatic Document Feeder (ADF)
- For both individual and team use
- Balances high-speed scanning and fast startup with energy efficiency
- Best experiences with ScanSnap Home
- Your usual settings and cloud save destinations are applied to the scanner
- Data Sync*2: Transcending device boundaries
- Save directly to a network folder*3 and cloud services, or send to email without the need for a PC
- Seamless integration with various digital services
- Environmentally conscious product design and packaging materials
- *1 Availability of 5 GHz Wi-Fi may vary depending on region.
- *2 Data Sync will be available in a later update.
- *3 Scanning to a network folder will be available in the late 2025 update.
Features
Whether in the office, at home, or in a coworking space, instantly apply your personal scan settings to enjoy smooth scanning

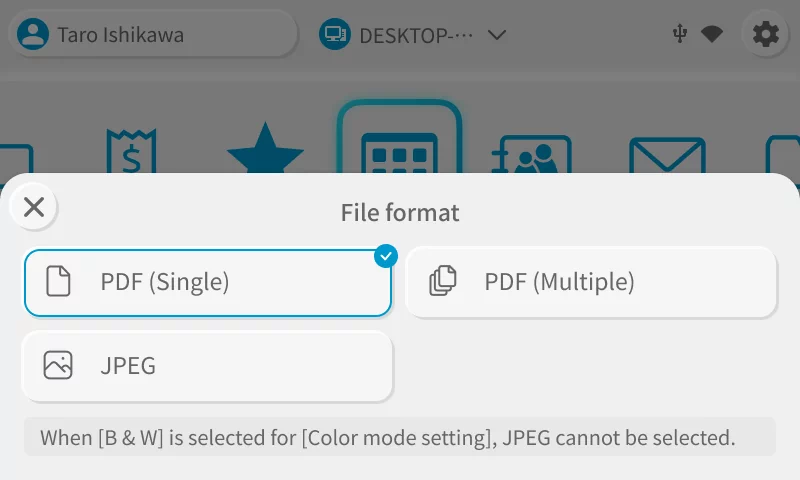

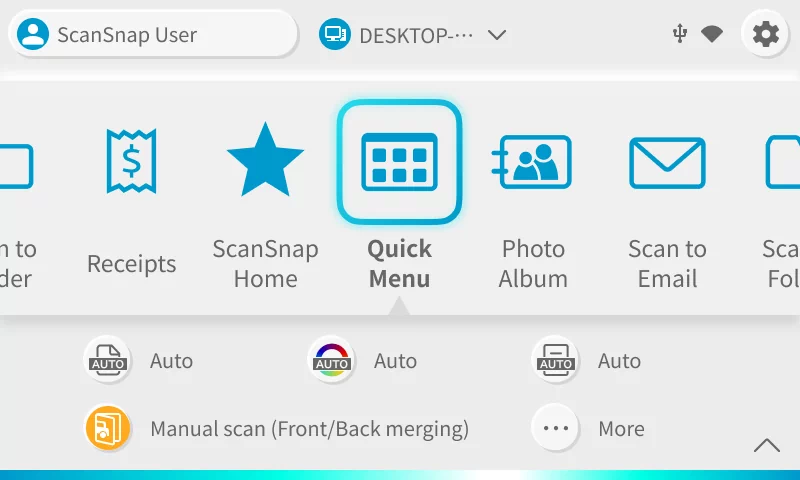

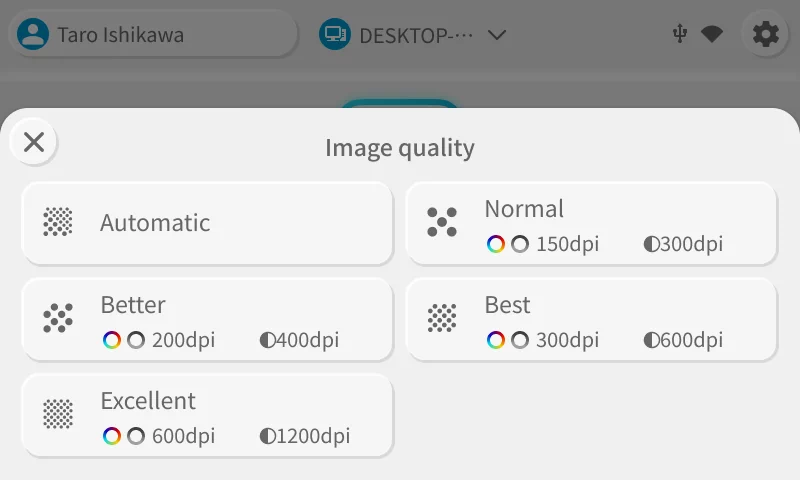

The large 5-inch touch screen with improved response allows you to view scan profiles created on your PC or smartphone as visual icons, such as saving destinations to PC folders or cloud services linked with ScanSnap Cloud. Furthermore, detailed scan settings, such as file format, color, image quality, and two-page stitching, can be configured on the touch screen, enabling the intuitive operation of the scanner.

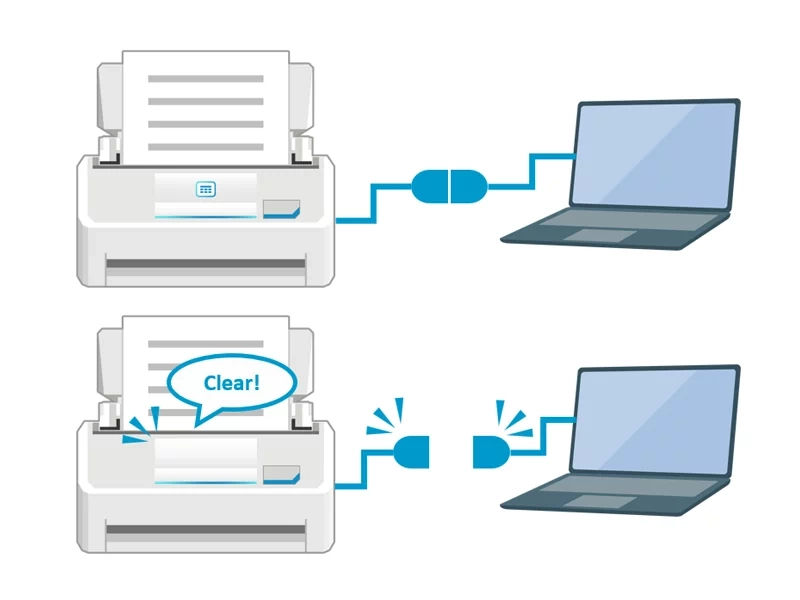

Your usual settings and cloud save destinations are applied to the scanner
Use the ScanSnap iX2500 on any office floor or a rental coworking space with your own settings and save destinations! By connecting a device to the ScanSnap iX2500, your usual settings and cloud save destinations are applied to the scanner, allowing any ScanSnap iX2500 to function as your personal scanner.

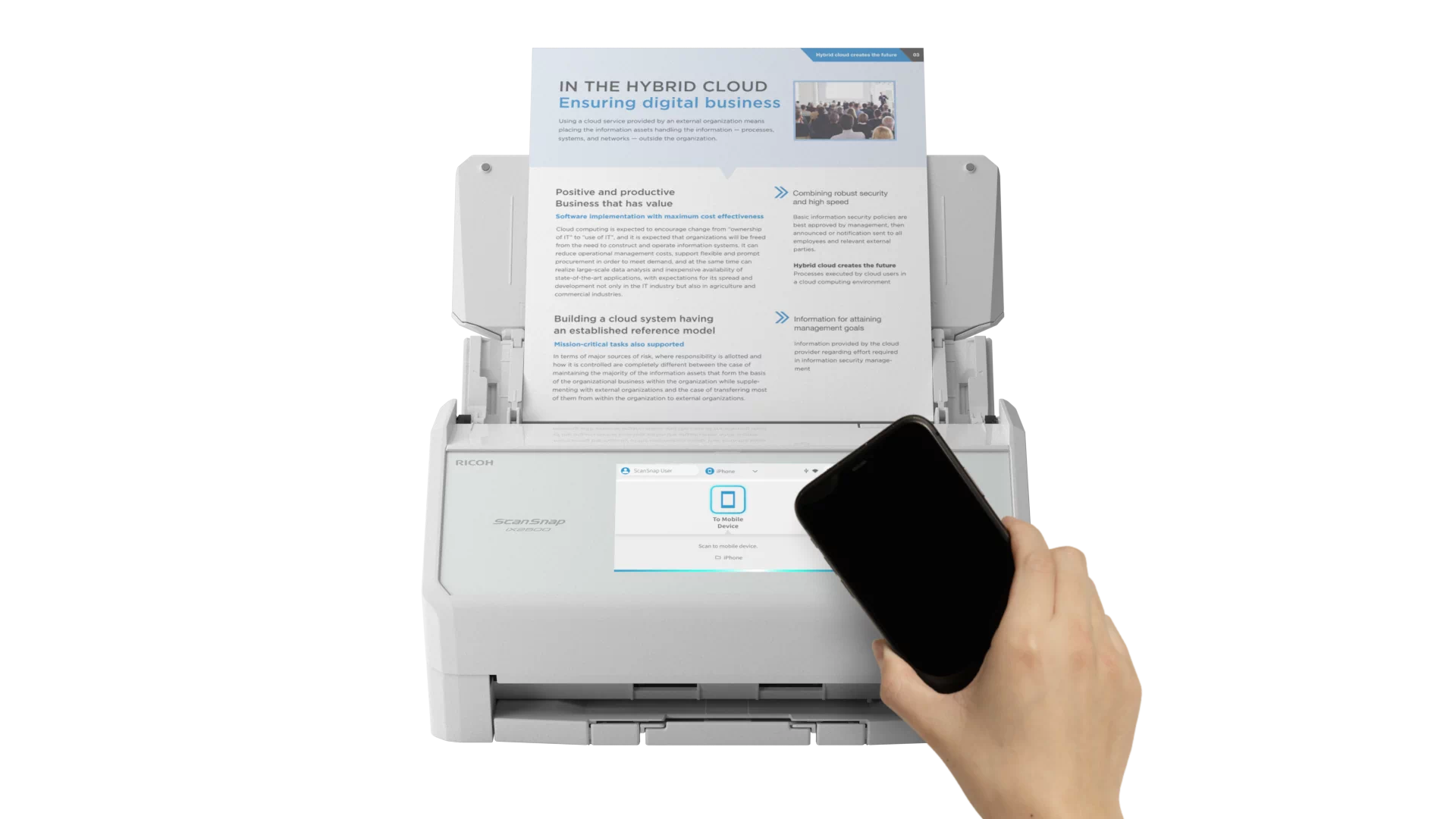

In addition, you can temporarily apply your usual settings to the ScanSnap iX2500 by bringing your smartphone close to it.* Instantly access your usual settings with just a smartphone. Convenient but secure short-term use is available for a shared environment.
- * This function will be available in a later update.

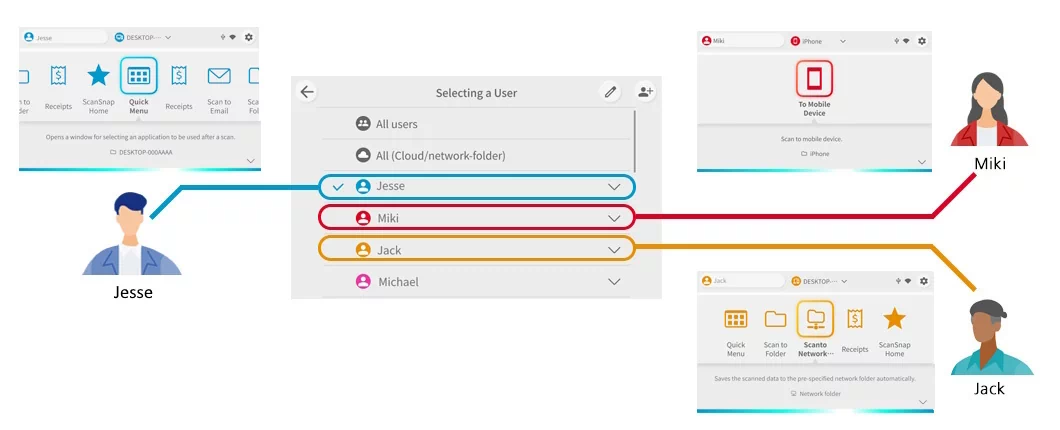

Intuitive user interface ideal for teams, families, and shared use
You can easily switch users on the touch screen to display your settings and icons, allowing you to scan without hesitation, even for shared use.
Seamless integration with various digital services*1

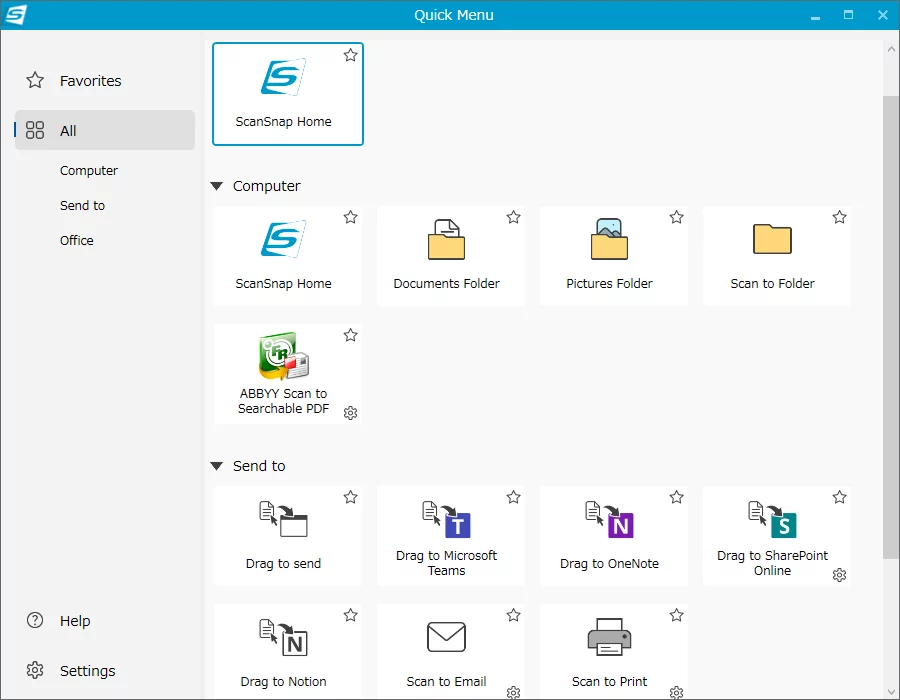

ScanSnap Home for PC has a revamped Quick Menu, which allows you to select saving and integration destinations after scanning. In addition to traditional options like folder saving and email sending, new integrations with Microsoft Teams, SharePoint, OneNote, Notion, and iCloud have been added.*2 For Microsoft Teams, OneNote, SharePoint, and Notion, the target applications' windows are opened, making data sharing a breeze. Moreover, various cloud services linked to the ScanSnap Cloud service*3 that would enable direct saving to the cloud are also suggested on the Quick Menu.
- *1 Services differ by region.
- *2 Need to install these applications on the user's PC to use the function.
- *3 For countries where this service is available, please visit here.
Stress-free usability on a PC, smartphone, or PC-free
With a new scan engine and the next-generation iiGA SoC, the ScanSnap iX2500 offers a stress-free and comfortable user experience.
Comfortable scanning with ultra high speed performance and large capacity
Scans A4 color duplex documents at 45 pages per minute and 90 images per minute for stable, high-speed scanning on PCs, as well as smartphones, and tablets. The maximum ADF capacity is 100, and even when the Receipt Guide is installed, 50 A4 sheets can be loaded, making it easy to scan large volumes of documents.

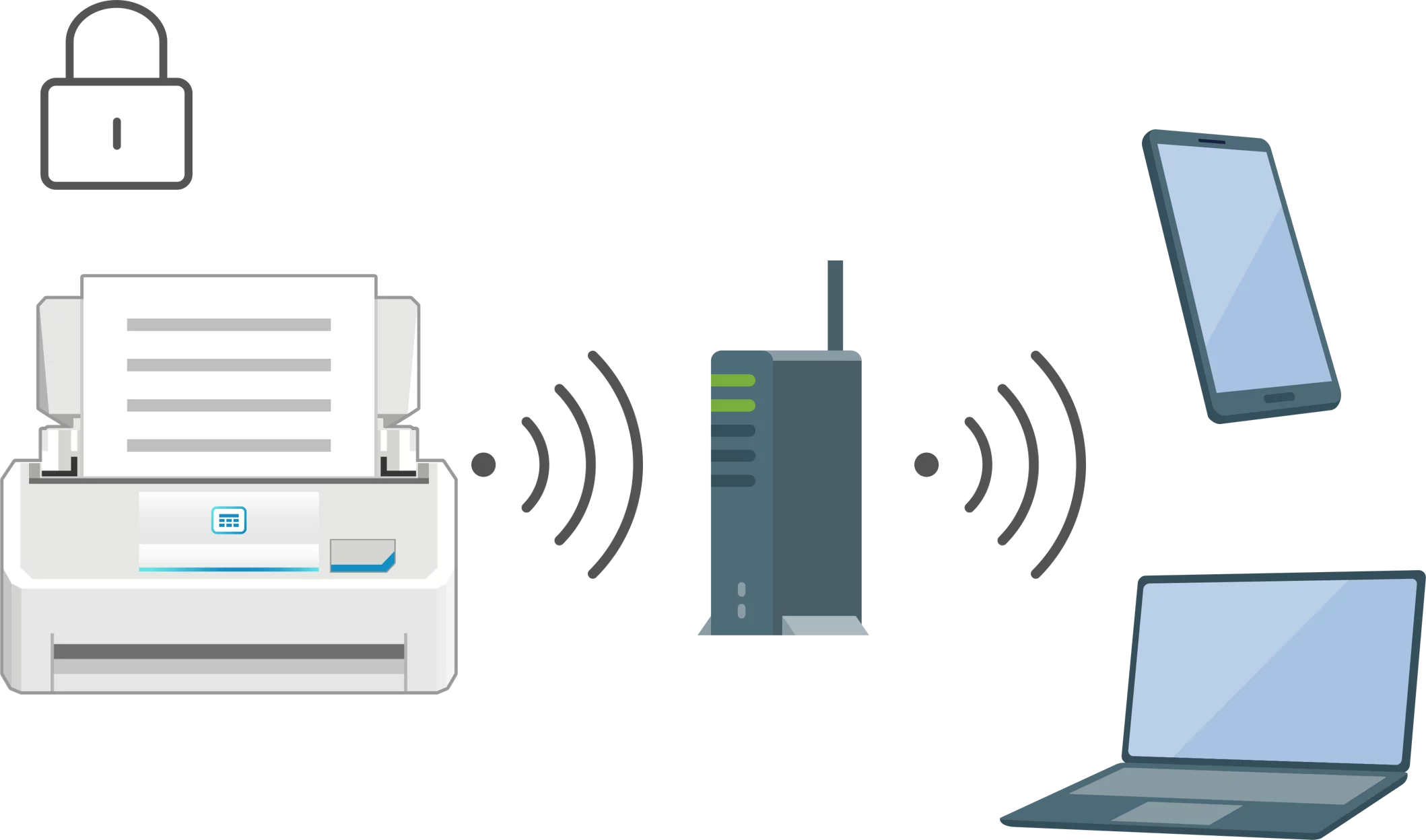

Wi-Fi connectivity for both smartphones and PCs
The ScanSnap iX2500 supports Wi-Fi (2.4 GHz and 5 GHz bands) and enables wireless saving to smart devices and the cloud without needing a PC. With Wi-Fi 6 (IEEE 802.11ax) compatibility, the scanner ensures robust and stable communication, even in environments with radio interference and congestion. Additionally, it supports the WPA3 security protocol and TLS 1.3, safeguarding your valuable information.

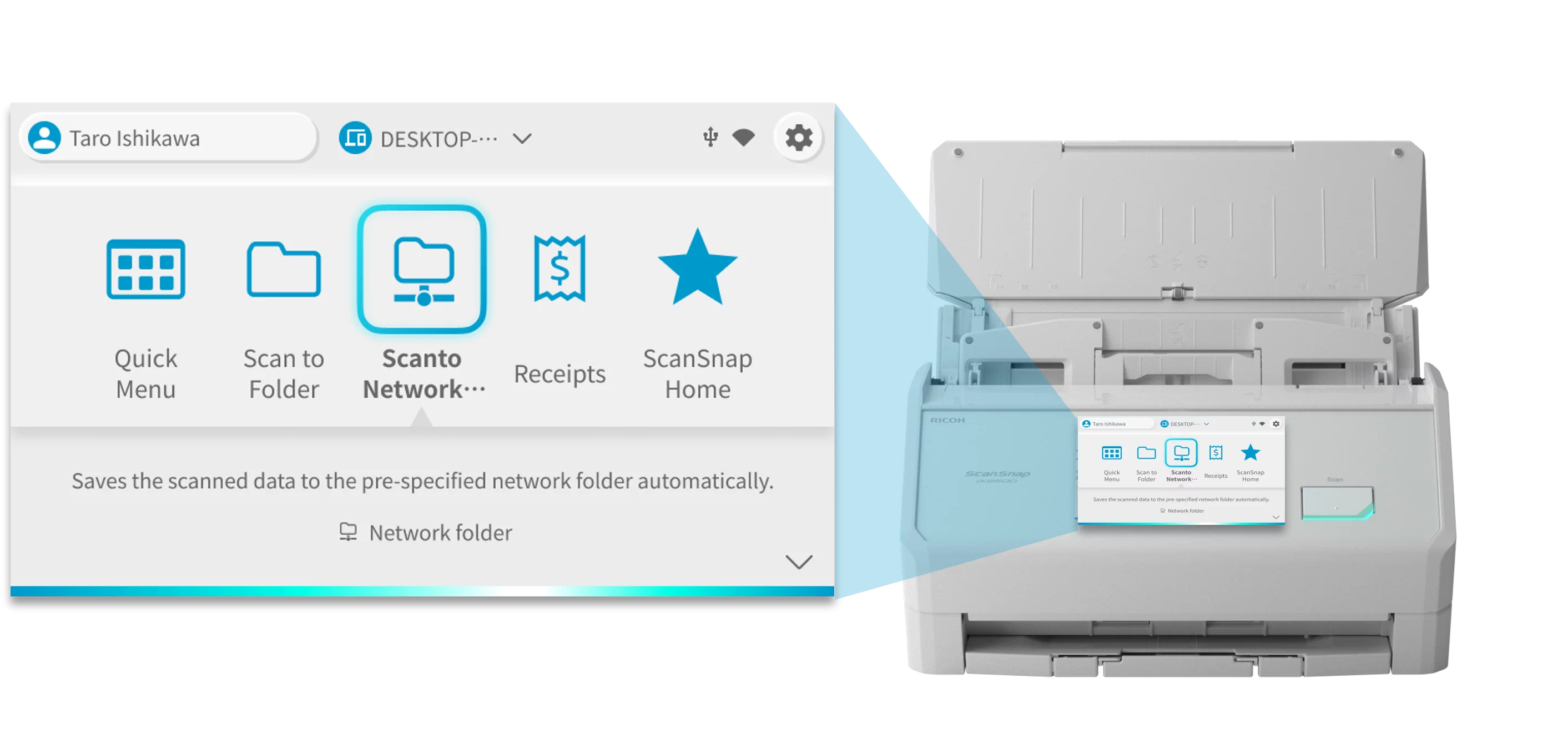

Save directly to a network folder* and cloud services, or send to email without the need for a PC
Save scanned data directly to network-attached storage (NAS) and to cloud services ScanSnap Cloud supports without a PC via touch screen operation.
Scanned data can also be sent via email using the icon (profile) to which a destination email address has been assigned in advance.
- * Scanning to a network folder will be available in the late 2025 update.
Environmentally conscious product design and packaging materials

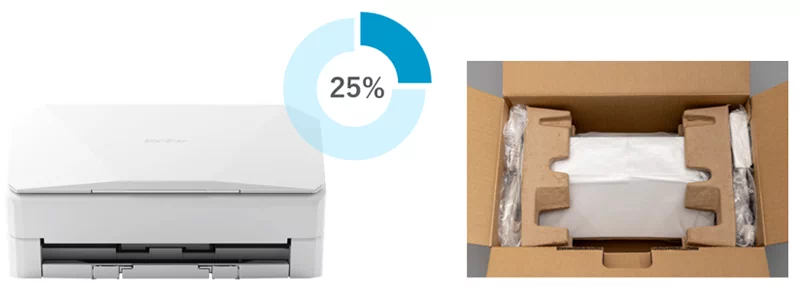

Less plastic waste
Recycled plastic is over 25% of the main unit's resin weight. We also use recycled plastics* and pulp molds for packaging and cushioning materials when transporting products, achieving zero use of virgin plastics derived from fossil resources. These contribute to reducing plastic waste.
- * Pre-consumer materials, which have not been used by consumers and are generated during the manufacturing and molding processes, are used.
Energy-saving features minimize the environmental impact
Industry-leading energy-saving performance with a power consumption of 17 W during operation, 1.0 W during sleep mode with USB connection. In addition, after ten minutes of inactivity of the scanner, the scanner automatically enters sleep mode, reducing unnecessary power consumption.
Please refer to RICOH Image Scanners Environment for more information on our eco-friendly initiatives in our scanner products.
Specifications
| Product Name | ScanSnap iX2500 (White / Black) | ||
|---|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex | ||
| Scanning color mode | Color, Grayscale, Monochrome, Automatic (Color/Grayscale/Monochrome*1 detection) | ||
| Image sensor | CIS x 2 (Front x 1, Back x 1) | ||
| Light source | 3 Color LED (Red/Green/Blue) | ||
| Optical resolution | 600 dpi | ||
| Scanning Speed*2 (A4 portrait) | Auto mode(Default)*3 | Simplex / Duplex: 45 ppm | |
| Normal mode | Simplex / Duplex: 45 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) | ||
| Better mode | Simplex / Duplex: 45 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) | ||
| Best mode | Simplex / Duplex: 45 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) | ||
| Excellent mode*1 *4 | Simplex / Duplex: 13 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) | ||
| Document Size | Normal Scan*5 | Minimum 50.8 x 50.8 mm (2 x 2 in.) Maximum 216 x 360 mm (8.5 x 14.17 in.) |
|
| Manual Scan | Minimum 50.8 x 50.8 mm (2 x 2 in.) Maximum 216 x 360 mm (8.5 x 14.17 in.)*7 |
||
| With Photo Carrier Sheet (Option)*1 | Minimum 25.4 x 25.4 mm (1 x 1 in.) Maximum 127 x 178 mm (5.0 x 7.0 in.) |
||
| With Carrier Sheet (Option)*1 | Minimum 25.4 x 25.4 mm (1 x 1 in.) Maximum 297 x 431.8 mm (11.69 x 17 in.) |
||
| With Booklet Carrier Sheet (Option)*1 | - | ||
| Long Paper Scanning*6 | PC | 3,000 mm*9 (863 mm in 32-bit) | |
| Smart Device / Cloud / NAS*8 |
Duplex: 863 mm Simplex: 1,726 mm |
||
| Paper Weight (Thickness) | 40 to 209 g/m2 (11 to 56 lb) A8 or less: 128 to 209 g/m2 (34 to 56 lb) Cards: 0.76 mm or less (Compliant with the ISO7810 ID-1 type) (Includes embossed cards in landscape orientation) |
||
| ADF Capacity*10 | 100 sheets (A4, 80 g/m2 or 20 lb) | ||
| Interface | USB | USB 3.2 Gen1 / USB 3.1 / USB 3.0 / USB 2.0 / USB 1.1 (Connector Type: Type-C) | |
| Wi-Fi | IEEE802.11a/b/g/n/ac/ax Frequency band: 2.4 GHz / 5 GHz*11 |
||
| Wi-Fi Connection Mode | Access Point Connect Mode (Infrastructure mode)*12 Direct Connect Mode (Ad-hoc mode)*13 |
||
| LCD | 5 in. color IPS touch screen | ||
| Power Requirements | AC 100 to 240 V, 50/60 Hz | ||
| Power Consumption | Operating | Approx. 17 W | |
| Sleep Mode(USB connection) | 1.0 W or less | ||
| Sleep Mode(Wi-Fi connection) | 1.4 W or less | ||
| When the power is off (default Normal mode) | 0.2 W or less | ||
| On standby in Fast mode (Wi-Fi off) | 1.0 W or less | ||
| On standby in Fast mode (Wi-Fi connection) | 1.4 W or less | ||
| Operating Environment |
Temperature: 5 to 35 °C (41 to 95 °F) Relative humidity: 20 to 80% (Non-condensing) |
||
| Dimensions (W x D x H) |
Min.: 292 x 161 x 159 mm (11.50 x 6.34 x 6.26 in.) (storage size) Max.: 292 x 477 x 286 mm (11.50 x 18.78 x 11.26 in.) (when the extension and the stacker are extended) |
||
| Device Weight | 3.5 kg (7.7 lb) | ||
| Environmental compliance | ENERGY STAR/RoHS | ||
| Multifeed detection | Overlap detection (Ultrasonic sensor), Length detection | ||
| Driver |
ScanSnap Home (ScanSnap specific driver)
|
||
- Available only when connecting to a computer.
-
Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:
- Windows 10 / CPU: Intel Core™ i3-10105 3.7GHz / Memory: 8GB / Storage: SSD
- macOS Monterey 12 / CPU: 3.0GHz 6 core Intel Core™ i5 (8th Generation) / Memory: 8GB / Storage: SSD / used Mac Mini (2018)
- Scans will be performed in 300 dpi (Color/Grayscale) or 600 dpi (Monochrome) if shorter sides are less than 105 mm, and in 200 dpi (Color/Grayscale) or 400 dpi (Monochrome) if shorter sides exceed 105 mm.
- Feature is unavailable when using ScanSnap Cloud.
- A3 scans are possible with use of A3 carrier sheets.
- A document longer than A4 paper can be scanned one by one. Available in all modes except for “Excellent mode”.
- A3, B4, 11 x 17 in. document sizes are required to be folded in half.
- Scanning to a NAS will be available in the late 2025 update.
- Up to 360 mm in Excellent mode.
- Maximum capacity varies, depending upon paper weight.
- Availability of 5 GHz Wi-Fi may vary depending on region.
- Access Point Connect Mode requires a Wi-Fi access point or router.
- The mode will be available in late 2025. 5 GHz Wi-Fi is not available with Direct Connect Mode.
System Requirements for PC
| Compatible Operating Systems*1 | Windows 11 / 10 (32-bit / 64-bit) | |
|---|---|---|
| Driver / Applications*2 | ScanSnap Home*4 | Supported |
| Kofax Power PDF Standard*5 | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | |
| Hardware Requirements*3 | CPU*6 | Intel or Intel-compatible processors |
| Display Resolution | 1,024 × 768 pixels or more | |
| Disk Capacity*7*8 | 3.8 GB or more of free disk space | |
- Operate Windows in desktop mode. ScanSnap scanners do not run with Windows 11 and 10 ARM-based PCs such as Surface Pro X (Microsoft).
-
Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
-
ScanSnap Home Installation requires a computer and Internet. Please visit the ScanSnap Support site for download information.
- Please refer to the included license certificate to download the software.
- Scanning speeds may vary due to the system environment.
- Indicated disk capacity requirements apply when downloading ScanSnap Home.
- .NET Framework 4.8 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for Mac
| Compatible Operating Systems | macOS Catalina 10.15 or later | |
|---|---|---|
| Driver / Applications*1 | ScanSnap Home*3 | Supported |
| Kofax Power PDF Standard for Mac*4 | Supported | |
| ABBYY FineReader for ScanSnap™ | Supported | |
| Hardware Requirements*2 |
CPU*5*6 | Intel processor or Apple silicon |
| Display Resolution | 1,024 x 768 pixels or more | |
| Disk Capacity | 2.5 GB or more of free disk space | |
-
Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
- The ScanSnap device may not work if the connected computer does not meet these requirements.
-
ScanSnap Home Installation requires a computer and Internet. Please visit the ScanSnap Support site for download information.
- Please refer to the included license certificate to download the software.
-
The ScanSnap device also operates with Apple Silicon-based Mac computers. Please refer to the ScanSnap Support site for the latest information.
- Scanning speeds may vary due to the system environment.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for Other Devices
For ScanSnap Home (for mobile), please refer to ScanSnap Home specifications tab.
Accessories
| Part Number | Description | |
|---|---|---|
| Consumables | ||
| Roller Set | PA03860-0001 | Lifetime: Every 200,000 sheets*1 |
| Cleaner F1 | PA03950-0352 |
100 ml bottle For use on the Brake roller and Pick roller |
| Cleaning Wipe | PA03950-0419 |
24 packets For use on the Brake roller and Pick roller |
| Cleaning Paper | CA99501-0012 |
10 sheets Use this non-woven sheet with Cleaner F1 |
| Options | ||
| Carrier Sheets*2 | PA03360-0013 | Contains 5 sheets supporting photographs and various document sizes |
| Photo Carrier Sheets | PA03770-0015 | Contains 3 sheets supporting photographs (E-size, L-size, King-size), postcards, and business cards |
| ScanSnap Bag | PA03951-0651 | Stores one ScanSnap unit and accessories |
- Replacement cycles are guidelines for using A4 documents (80 g/m² [20 lb]). These cycles vary depending on the type of documents scanned, how often the scanner is used and cleaned, and your operating environment.
-
Although ScanSnap Carrier Sheets have a listed lifespan of 500 scans, the lifespan may vary with usage. ScanSnap Carrier sheets are intended to scan paper documents with weights of 209 g/m² or less. They also support the scanning of folded documents that are as large as 216 x 297 mm.
*It is recommended to use original or approved accessories for consumables, options and cleaning kits, specially designed for your device. Device failures, troubles and damages arising from use of OEM or 3rd Party accessories may render your warranty invalid and incur charges for repair even during the warranty period.
