FUJITSU Image Scanner SP25

Overview

Equipped with the paper feeding mechanism of fi Series with cost effective high performance
- Supports scanning a wide range of documents
- High speed and reliable scanning when scanning large volume or mixed batch of documents
- Compact size suitable for desk use
Bundled with ready-to-use software
- PaperStream IP - Scanner driver that supports TWAIN/ISIS™
- Presto!™ PageManager™ - Image data management/editing application developed by NewSoft Technology Corp.
- ABBYY™ FineReader™ Sprint - OCR application developed by ABBYY Software Ltd.

Features

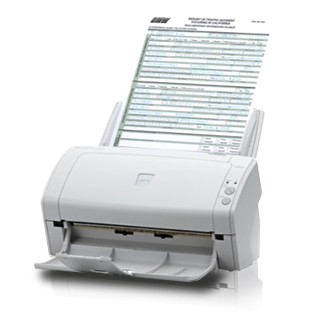

Equipped with the paper feeding mechanism of fi Series with cost effective high performance

Supports scanning a wide range of documents
The SP25 is equipped with straight path paper feeding mechanism for reliable scanning and high precision separation mechanism using brake rollers. This means SP25 is able to scan a wide range of documents including non-standard documents, such as thin documents (41g/m² or above) and plastic cards (up to 1.4mm in thickness).
High speed and reliable scanning when scanning large volume or mixed batch of documents
The SP25 is able to scan A4 documents at an impressive 25ppm (color, duplex, 200/300dpi). To further improve work efficiency, it is also armed with ultrasonic sensor to detect multi-feed to ensure reliable scanning even when scanning large volume or mixed batch of documents.

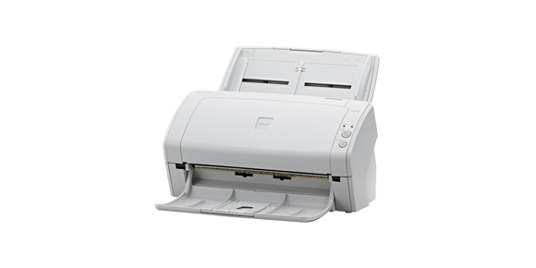

Compact size suitable for desk use
The SP25 is compact in size and does not occupy your valuable desktop space (301mm(W) x 160mm(D) x 158mm(H)), so it is always ready to be used any time.

Bundled with ready-to-use software

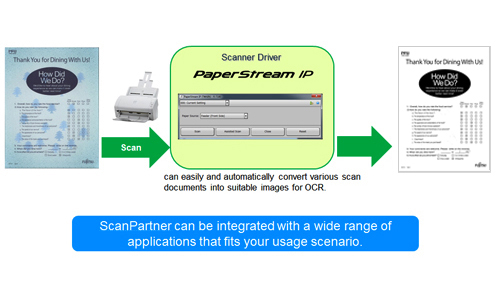

PaperStream IP – Scanner Driver
The SP25 is equipped with automated functions such as auto size recognition and blank page removal to simplify scanning operations and pre-scan sorting. In addition, the image can be automatically converted into B & W image which is optimized OCR (Optical Character Recognition). To this end, the scanner can be integrated with a wide range of applications that fits any usage scenario.

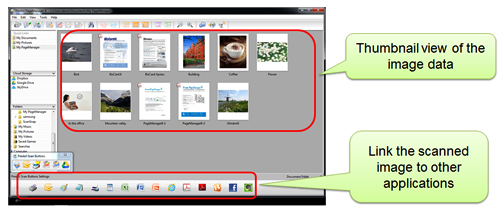

Presto!™ PageManager™ – Image data management/editing application developed by NewSoft Technology Corp.
This software allows user to save image data in various format and add password to the PDF file for managing and editing scanned data easily.

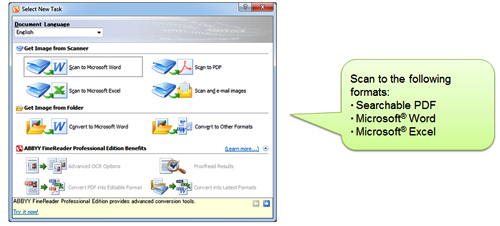

ABBYY™ FineReader™ Sprint – OCR application developed by ABBYY Software Ltd.
This software can convert scanned images into text documents, such as searchable PDF or Microsoft® Word file to be utilized for other work tasks.

Specifications

Models		SP25
Supported operating systems		Windows® 10 (32-bit / 64-bit), Windows® 8 / 8.1 (32-bit / 64-bit), Windows® 7 (32-bit / 64-bit), Windows Vista® (32-bit / 64-bit), Windows® XP (32-bit / 64-bit), Windows Server® 2012 ^[1], Windows Server® 2008 (32-bit / 64-bit) ^[1]
Scanner Type		ADF (Automatic Document Feeder)
Scanning modes		Simplex / Duplex, Color / Grayscale / Monochrome
Image Sensor Type		Color CCD (Charge-Coupled device) x 2 (Front x 1, Back x 1)
Light Source		White Cold Cathode Discharge Lamp x 2 (Front x 1, Back x 1)
Multi-feed detection		Ultrasonic multi-feed detection sensor x 1
Document size	ADF Maximum ^[2]	A4 Portrait: 210 mm x 297 mm Legal: 216 mm x 355.6 mm (8.5 in. x 14 in.)
	ADF Minimum	A8: 52 mm x 74 mm (2 in. x 3 in.)
	Long document (Maximum) ^[3]	216 mm x 863 mm (8.5 in. x 34 in.), or 210 mm x 3,048 mm (8.27 in. x 120 in.)
ADF Feeding Paper Weight (Thickness)		41 g/m² to 209 g/m² (11 lb to 56.2 lb) and only supports 127 g/m² to 209 g/m² (34 lb to 56.2 lb) for A8 size. Plastic card types (ADF): Portrait / Landscape, 1.4 mm thickness or less ^[4]
Scanning speed (A4, Portrait) ^[5]	Color ^[6]	Simplex: 25 ppm (200 dpi / 300 dpi) Duplex: 50 ipm (200 dpi / 300 dpi)
	Grayscale ^[6]
	Monochrome
ADF Capacity ^[7]		50 sheets (A4: 80 g/m² or 20 lb) (Active loadable ADF)
Expected daily volume		3,000 sheets/day
Background colors		White
Optical Resolution		600 dpi
Output Resolution ^[8]	Color (24-bit)	50 dpi to 600 dpi (adjustable by 1 dpi increments), 1200 dpi ^[9]
	Grayscale (8-bit)
	Monochrome (1-bit)
Output format	Color	24-bit
	Grayscale	8-bit
	Monochrome	1-bit
Internal video processing		1,024 levels (10-bit)
Interface		USB2.0 / USB1.1
Connector shape		B type
Image processing function	Hardware or Driver	Dropout color (R, G, B)
Image processing function	Driver	Deskew & Cropping, Image Emphasis, Error diffusion, Dither, iDTC, Simplified DTC, Smoothing, Dropout color (None, Specified, White, Color Saturation), Multi-image, Blank page skip, Advanced-DTC, sRGB, Auto color detection, Upper lower separation, Vertical Streaks Reduction, Digital-Endorser, Edge Filler
Power requirement		AC 100 V to 240 V ± 10%
Power consumption	During operation	38 W or less
	Power saving mode	2.2 W or less
	Power OFF	0.35 W or less
Operating environment	Temperature	5 deg. to 35 deg. (41 deg. F to 95 deg. F)
Operating environment	Relative humidity	20 % to 80 % (Non-condensing)
Dimensions: Width x Depth x Height ^[10]		301 mm x 160 mm x 158 mm (11.9 in. x 6.3 in. x 6.2 in.) Installation space: 400 mm x 700 mm x 380 mm (15.8 in. x 27.6 in. x 15.0 in.)
Weight		4.2 kg (9.26 lb) or less
Bundled software / drivers		PaperStream IP (TWAIN) Driver, PaperStream IP (TWAIN x64) Driver, PaperStream IP (ISIS™) Driver, Presto!™ PageManager™, ABBYY™ FineReader™ Sprint
Environmental compliance		ENERGY STAR® and RoHS
Inbox Contents		ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM, Quick Installation Sheet, Safety Precautions

[Note]

Presto!™ PageManager™ and ABBYY™ FineReader™ Sprint dosn't support.
Document sizes larger than A4, but not exceeding A3, can be scanned (single-side) using a Carrier Sheet.
Capable of scanning documents that exceed A4 size in length. However, the scanning of documents that exceed 863 mm (34 in.) in length will be limited to 200 dpi or less.
Supports continuous scanning of up to three cards. (Multi-embossed cards are not supported).
Both data transmission and software processing times affect actual scanning speeds.
Indicated speeds are from using JPEG compression.
Maximum capacity varies, depending upon paper thickness.
Maximum output resolutions may vary, depending upon the size of the area being scanned.
Scanning limitations brought about by scanning mode, document size and available memory may occur when scanning at high resolutions (600 dpi or higher).
Indicated dimensions exclude the ADF paper chute and stacker.

Accessories

	Part Number	Description
SP25 Consumables
Brake Roller	PA03540-0001	Lifetime: Every 200,000 sheets or one year. These rollers separate documents as they are being fed into the scanner.
Pick Roller	PA03540-0002	Lifetime: Every 200,000 sheets or one year. These rollers feed documents into the scanner.
SP25 Options
Carrier Sheets	PA03360-0013	Each package contains 5 carrier sheets. It is recommended that each carrier sheet be replaced after it has been used for 500 scans.
