Setting Up S1100i

Set up the ScanSnap so that it is ready to scan with ScanSnap Manager.

The following preparations are required before you set up the ScanSnap.

  • Check that all items are included in the package

    For details, refer to Package List for S1100i.


    When Getting Started is included in the package, refer to "Package List" in Getting Started.

  • Remove the tape seal (1) and tape (2) from the ScanSnap
    Removing the Materials Used for Protection

The procedure to set up the ScanSnap is as follows:

1 Downloading the Software

2 Installing the Software/Connecting the ScanSnap

3 Checking the Scanning Operation

1Downloading the Software

  1. Turn on the computer and log on as a user with Administrator privileges.
  2. Access the website "ScanSnap Installer".
  3. Download [ScanSnap Installer] and save it on your computer.

    By using the installer that you downloaded, you can install the following software programs.

    • ScanSnap Manager
    • ScanSnap Online Update
    • ScanSnap manual

    Install software applications other than the above if needed.

    For the overview for each software program, refer to Overview of the Software Related to the ScanSnap.

2Installing the Software/Connecting the ScanSnap

  1. Run the installer that you saved on your computer.
  2. Follow the instructions on the [ScanSnap Installer] window that appears.

    When you are asked whether you accept the license agreement terms, read the confirmation message and select [I agree to all terms and conditions].

  3. When [Installation complete] appears, click the [Complete] button.
  4. Follow the instructions on the [ScanSnap - Connecting the ScanSnap] window to connect the ScanSnap to a computer.

If there are available updates for ScanSnap Online Update on the server, you will be asked whether you accept the license agreement terms for ScanSnap Online Update.

For details about ScanSnap Online Update, refer to the ScanSnap Online Update Help.

3Checking the Scanning Operation

  1. Insert a document in the ScanSnap.

    Insert a document straight into the feeding section of the ScanSnap, with the scanning side facing up.

    For details about how to scan a document, refer to Scanning Documents with S1100i.

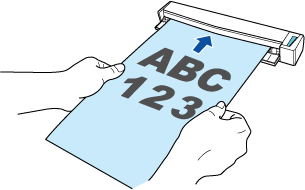

    Inserting a Document
  2. Press the [Scan/Stop] button to start scanning.

    To continue scanning, insert the next document to be scanned. When the document is inserted, scanning starts automatically.

    When the scanning of documents is complete, press the [Scan/Stop] button to finish scanning documents.

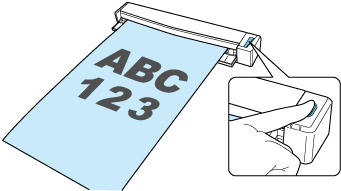

    Pressing the [Scan/Stop] Button

Once the Quick Menu for selecting an application to perform a particular action appears, the check process for the scanning operation is complete.

Clicking an icon on the Quick Menu allows you to save images created from documents that you scanned with the ScanSnap to your desired folder, or attach them to an e-mail.
