Scanning Documents Larger Than A4 or Letter Size (iX1600/iX1500)

To scan an A3, B4, or Double Letter size document with ScanSnap Connect Application, fold it in half and then scan it.

For details about documents that can be scanned, refer to Documents That Can Be Loaded Directly into iX1600/iX1500.

ATTENTION

The scanned images of both sides cannot be merged when you scan with ScanSnap Connect Application.

The procedure to scan documents larger than A4 size is as follows:

  1. Open the ADF paper chute (cover) of iX1600 or iX1500.
    Opening the ADF Paper Chute (Cover)
  2. Pull out the extension and stacker on the ADF paper chute (cover).
    Pulling Out the Extension and Stacker
  3. Tap the [Settings] button (for iPhone/iPod touch, Settings Button) on the [File List] screen or do the same thing on the folder screen with the ScanSnap Sync function set to on.

    The [Settings] screen appears.

  4. Tap [Profile] in the [Settings] screen.

    Available profiles appear.

  5. Select [Manual Scan] for [Feed] in [Scanning].
  6. Tap the [Back] button to return to the [File List] screen or the folder screen with the ScanSnap Sync function set to on.
  7. Load documents in iX1600 or iX1500.

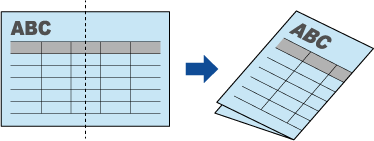

    1. Fold the document in half so that the sides to be scanned are facing out.

      Folding the Document in Half

    2. Load the document in the ADF paper chute (cover).

      Loading the Document

    3. Adjust the side guides to both edges of the document.

      Hold each side guide in the middle to adjust them. Otherwise, the documents may be fed skewed.

      Adjusting the Side Guides
    ATTENTION

    Automatic image rotation is not available when scanning with ScanSnap Connect Application.

  8. Perform a scan.

    • To scan from ScanSnap Connect Application

      Tap the [Scan] button on the [File List] screen or do the same thing on the folder screen with the ScanSnap Sync function set to on.

    • To scan from iX1600/iX1500

      Press the [Scan] button in the home screen on the touch panel.

  9. Finish scanning.

    • To finish scanning with ScanSnap Connect Application

      Tap the [Exit] button.

    • To finish scanning with iX1600/iX1500

      Press the [Finish] button on the touch panel.

    A message appears indicating that the file is being received.

    The received file will appear on the [File List] screen or the [Files] screen.

    HINT

    • You can change the setting for [Feed] by pressing the feed mode setting icon in the lower right of the screen for continuing a scan on the touch panel of iX1600 or iX1500.

      When you scan multiple documents such as office paper, select [Continuous Scan] for [Feed].

    • To save the received file in the photo album, set [Save to photo album] to on (in the [File format] screen from [Profile]).

      In the photo album, confirm that the image data meets your requirements.

    • To save the received file in the Files app, set [Save to the Files app] to on (in the [File format] screen from [Profile]).

      In the Files app, confirm that the image data meets your requirements.

    • When the ScanSnap Sync function is set to on, the received file is uploaded to a synced cloud service automatically if you set [Auto Upload] to on in [ScanSnap Sync Setting] and an Internet connection is established.

  10. Tap the received file on the [File List] screen or the [Files] screen.

    The [Preview] screen appears.

  11. Confirm that the image data meets your requirements.
    HINT

    You can send and view the received file in another application. When the ScanSnap Sync function is set to on, the received file can be uploaded to a cloud service.

ATTENTION

  • The scanned data will be discarded if you exit ScanSnap Connect Application during scanning.

  • When a notification occurs such as an e-mail alert, alarm or power shortage, a mobile device connected to iX1600 or iX1500 will be disconnected and scanning will be canceled.

    In this case, you can keep the scanned data created before the disconnection, however, you cannot continue scanning the rest of the document.

  • Scanning using the Carrier Sheet is not available.

    If you use ScanSnap Manager on your computer, use ScanSnap Manager to scan a document placed inside the Carrier Sheet. You can receive the file or download the file to your mobile device in the following procedure.

    • Use Scan to Mobile to receive the file

    • Use the ScanSnap Sync function to download the file that is saved in ScanSnap Organizer

  • Up to 1,000 pages can be created for a single PDF file.

  • Do not close the application while receiving a file. Doing so may slow down the next startup because the [File List] screen or the folder screen with the ScanSnap Sync function set to on takes time to reload.
