Scanning Basic Documents (iX1600/iX1500)

ScanSnap Connect Application can be used to scan documents.

For details about documents that can be scanned, refer to Documents That Can Be Loaded Directly into iX1600/iX1500.

The procedure to scan documents is as follows:

  1. Open the ADF paper chute (cover) of iX1600 or iX1500.
    Opening the ADF Paper Chute (Cover)
  2. Pull out the extension and stacker on the ADF paper chute (cover).
    Pulling Out the Extension and Stacker

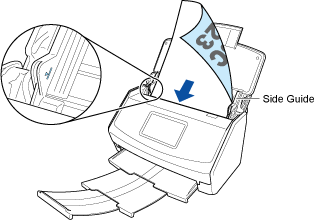

  3. Load a document in the ADF paper chute (cover).

    Load a document face-down and head-first with the back facing you (when loading multiple documents, the last page is on the top). Adjust the number of documents so that they do not go beyond A Reference Mark for Loading Documents and are kept within the side guides when they are loaded.

    Loading the Document
    ATTENTION

    Automatic image rotation is not available when scanning with ScanSnap Connect Application.

  4. Adjust the side guides to both edges of the document.

    Hold each side guide in the middle to adjust them. Otherwise, the documents may be fed skewed.

    Adjusting the Side Guides
  5. Perform a scan.

    • To scan from ScanSnap Connect Application

      Tap the [Scan] button on the [File List] screen or do the same thing on the folder screen with the ScanSnap Sync function set to on.

    • To scan from iX1600/iX1500

      Press the [Scan] button in the home screen on the touch panel.

    A message appears indicating that the file is being received.

    The received file will appear on the [File List] screen or the [Files] screen.

    HINT

    • When [Continuous Scan] is selected for [Feed] under [Scanning] in [Profile], after scanning is complete, a message appears asking you whether to continue scanning or not.

      Load documents in iX1600 or iX1500. Then, press the [Continue] button or the [Scan] button on the touch panel to continue scanning.

      You can change the setting for [Feed] by pressing the feed mode setting icon in the lower right of the screen for continuing a scan on the touch panel of iX1600 or iX1500.

      When you scan the following documents, select [Manual scan] for [Feed].

      • Documents folded in half

      • Envelopes

      • Documents with sticky notes attached

      • Multi-layered documents such as transfer paper

      • Long page documents such as long receipts

      • Plastic cards

      To end the scan, press the [Exit] button on ScanSnap Connect Application or press the [Finish] button on the touch panel.

    • To save the received file in the photo album, set [Save to photo album] to on (in the [File format] screen from [Profile]).

      In the photo album, confirm that the image data meets your requirements.

    • To save the received file in the Files app, set [Save to the Files app] to on (in the [File format] screen from [Profile]).

      In the Files app, confirm that the image data meets your requirements.

    • When the ScanSnap Sync function is set to on, the received file is uploaded to a synced cloud service automatically if you set [Auto Upload] to on in [ScanSnap Sync Setting] and an Internet connection is established.

  6. Tap the received file on the [File List] screen or the [Files] screen.

    The [Preview] screen appears.

  7. Confirm that the image data meets your requirements.
    HINT

    You can send and view the received file in another application. When the ScanSnap Sync function is set to on, the received file can be uploaded to a cloud service.

ATTENTION

  • The scanned data will be discarded if you exit ScanSnap Connect Application during scanning.

  • When a notification occurs such as an e-mail alert, alarm or power shortage, a mobile device connected to iX1600 or iX1500 will be disconnected and scanning will be canceled.

    In this case, you can keep the scanned data created before the disconnection, however, you cannot continue scanning the rest of the document.

  • Up to 1,000 pages can be created for a single PDF file.

  • Scanning using the Carrier Sheet and Photo Carrier Sheet is not available.

    If you use ScanSnap Manager on your computer, use ScanSnap Manager to scan a document placed inside the Carrier Sheet. You can receive the file or download the file to your mobile device in the following procedure.

    • Use Scan to Mobile to receive the file

    • Use the ScanSnap Sync function to download the file that is saved in ScanSnap Organizer

  • Do not close the application while receiving a file. Doing so may slow down the next startup because the [File List] screen or the folder screen with the ScanSnap Sync function set to on takes time to reload.
