Loading Documents

1. Check the documents.
   1. Check if the documents to be loaded are of the same width or different widths.
      Ways to load documents differ depending on whether the documents are of the same width or not.
      If the document width varies, refer to the Operator's Guide.
   2. Check the number of sheets.
      Up to 50 sheets can be loaded (with paper weight of 80 g/m² [20 lb] and thickness of the document stack under 5 mm).
      For details, refer to the Operator's Guide.
2. Fan the documents.
   Before loading a stack of documents, fan them by referring to How to Fan Documents.
3. Pull out the chute extension 1 and chute extension 2 according to the length of the document.
4. Load the documents in the ADF paper chute.
   Set the documents with their front side (scanning side) facing the ADF paper chute.


   ---

   CAUTION:

   Remove all paper clips and staples. Reduce the amount of documents if a multifeed or pick error occurs.

   ---




   ---

   HINT:

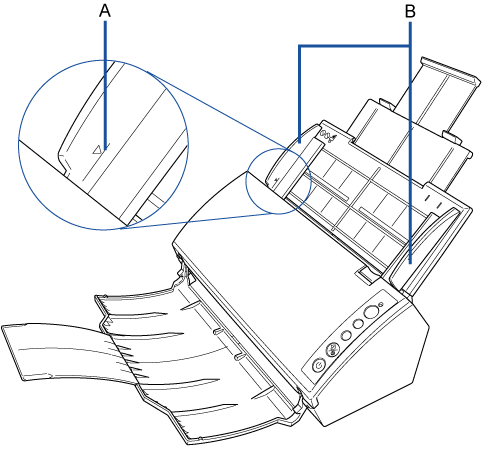

   Make sure to keep the documents within the limit which is indicated by the line on the inside of each side guide. A Line B Side Guide

5. Adjust the side guides to the width of the documents.
   Set the side guides so that there is no space left between the side guides and the documents.
   Otherwise, the documents may be fed skewed.
6. Lift up the stacker and stacker extension according to the length of the documents.

The procedure can be viewed on the Video.
