Parts and Functions

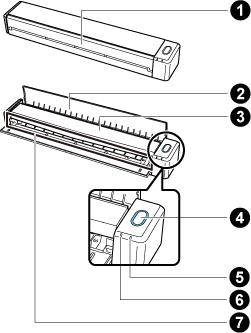

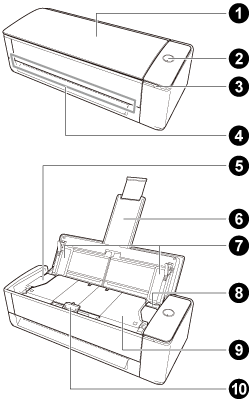

Turns on the ScanSnap.

Starts and finishes scanning documents.

Indicates the status of the ScanSnap.

Blue (lit): Ready

Blue (flashing): Scanning

Orange (flashing): Error

Purple (lit): Using ScanSnap Cloud

When you establish a link with a cloud service by using ScanSnap Cloud, refer to The Status of the ScanSnap When Using ScanSnap Cloud.

For regions where a cloud service linkage is available, refer to here.

Indicates the status of the Wi-Fi connection of the ScanSnap.

Blue (lit): Connected (Access Point Connect mode)

Blue (flashing): Standby

Green (lit): Connected (Direct Connect mode)

Orange (lit): Not Connectable or waiting for connection in Direct Connect mode

Orange (flashing): Not Connectable (WPS error)

Purple (lit): Using ScanSnap Cloud

When you establish a link with a cloud service by using ScanSnap Cloud, refer to The Status of the ScanSnap When Using ScanSnap Cloud.

For regions where a cloud service linkage is available, refer to here.

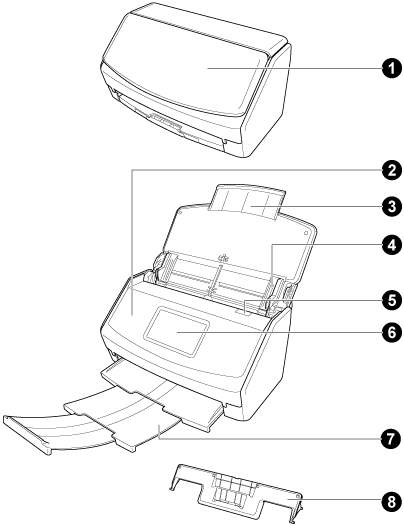

Insert a document into the manual feeder when you scan it with Return Scan.

Open it to remove jammed documents, replace the consumable (Roller Set), or clean the inside of the ScanSnap.

Open it to remove jammed documents, replace the consumable (pick roller or pad unit), or clean the inside of the ScanSnap.

Pull out when scanning long documents.

When the ADF paper chute (cover) is opened, it will rise automatically.

It holds documents loaded in the ADF paper chute (cover) when you scan documents with U-turn Scan.

If the documents go outside the range of the extension, pull out the top end of the extension manually.

Adjust to the width of documents to prevent them from getting skewed.

Pull this tab to open the ADF top section.

Open it to eject documents from the front of the ScanSnap.

Select an ejection method depending on the document type you are scanning.

For details, refer to Documents That Can Be Scanned with the ScanSnap.

• When the output guide is closed



• When the output guide is open



Open it to remove jammed documents or clean the inside of the ScanSnap.

Used to display the connection status of the ScanSnap, start scanning of documents, or change the settings of the ScanSnap.

When the ScanSnap is turned off automatically, press the touch panel to turn it back on.

Starts and finishes scanning documents.

When the ScanSnap is turned off automatically, press the [Scan/Stop] button to turn it back on.

Indicates the status of the ScanSnap.

Blue (lit): Ready

Blue (flashing): Scanning

Orange (flashing): Error

Purple (lit): Using ScanSnap Cloud

When you establish a link with a cloud service by using ScanSnap Cloud, refer to The Status of the ScanSnap When Using ScanSnap Cloud.

For regions where a cloud service linkage is available, refer to here.

Indicates the remaining battery power and battery charging status.

• When the power is on

  Blue (lit): Fully charged

  Orange (lit): Charging

  Orange (flashing): Low battery

• When the power is off

  Orange (lit): Charging

Indicates the status of the Wi-Fi connection of the ScanSnap.

Blue (lit): Connected (Access Point Connect mode)

Blue (flashing): Standby

Green (lit): Connected (Direct Connect mode)

Orange (lit): Not Connectable or waiting for connection in Direct Connect mode

Orange (flashing): Not Connectable (WPS error)

Purple (lit): Using ScanSnap Cloud

When you establish a link with a cloud service by using ScanSnap Cloud, refer to The Status of the ScanSnap When Using ScanSnap Cloud.

For regions where a cloud service linkage is available, refer to here.

Pull it out to use it.

It stacks up the ejected documents.

When you scan documents with U-turn Scan, the ejected documents stack up on the stacker.

The stacker rises and the top part extends automatically when documents are scanned, and the stacker returns to the original place after scanning all the documents.

When you scan documents with U-turn Scan, the support tab holds down the documents that are ejected on the stacker.

Insert a document into the feeding section.

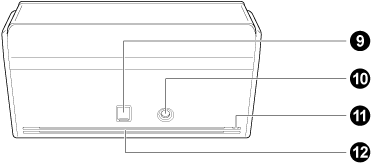

Used to connect an anti-theft security cable (commercially available).

Slide the cover of the USB connector up to open it and then connect the USB cable to the USB connector.

The cover of the USB connector slides up either one or two levels. Open the cover according to the type of the USB cable you have.

• First level: USB 2.0 cable

• Second level: USB 3.0 cable

Used to connect a USB cable.

Used to connect a power cable that is an AC cable which is connected to the AC adapter.

Remove this tape seal after installing the software.

Used to connect an anti-theft security cable (commercially available).

Used to connect a USB cable.
