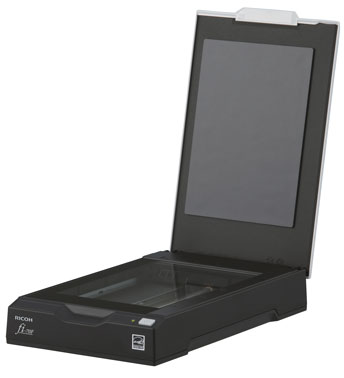

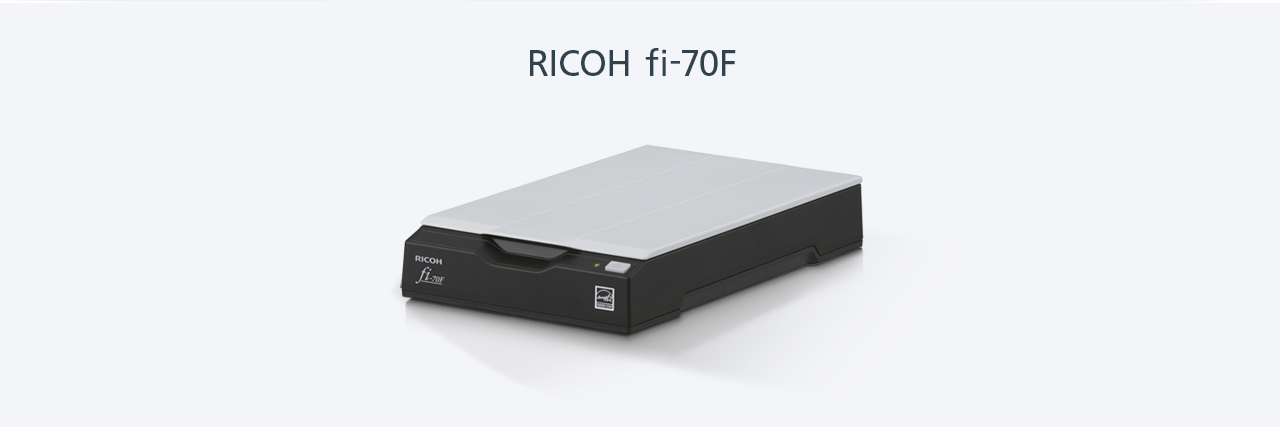

RICOH fi-70F
Overview
Compact design ideal for use at counter desks
The fi-70F designed for portability and compact spaces guarantees simple and fast scanning for a variety of identification and small cards.
- Scanning in 1.3 seconds (Color, A6, 200 dpi)
- Coverless scanning with automatic functionalities for increased user productivity
- Easy, one button touch scanning
- USB power option for portability
- Comes with PaperStream IP and PaperStream Capture providing advanced image processing functions
- PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps
- PaperStream Capture Pro software available as a premium option
Features
Fast, reliable scanning performance for better productivity
The compact, lightweight fi-70F high-speed scanner is ideal for front office, reception, patient intake, and retail environments. It quickly scans all major types of identification and small cards, including driver's licenses, passports, military IDs, insurance cards, credit cards, photos, and small survey forms.
Capture details in just one second
The scanner delivers clean, crisp scans up to 105 mm x 148 mm (4.1 in. x 5.8 in.) in color, grayscale, and monochrome with true, 600 dpi optical resolution. When time is critical, users can scan documents at 300 dpi in monochrome or 8-bit grayscale in just one second, and 24-bit color scans at 200 dpi take just 1.3 seconds.
Precise scanning in any situation
The scanner increases user productivity with coverless scanning that eliminates the repetitive task of opening and closing the cover before and after each scan. Automatic deskewing, cropping, and rotating functionalities ensures that documents are scanned accurately even when the cover is open.
Stress-free usability for operators
Comfortable scanning with a user-friendly design
Equipped with the scan button on the front of the scanner, users can complete scanning work by simply placing a document and pressing the scan button. This helps users increase the speed of capturing multiple documents with minimal workload. High-speed USB 2.0 connectivity also combines outstanding performance and easy installation. Without the need of the AC cable, the scanner can be used in places where power supply is not available.
Environment-friendly specifications
The fi-70F is designed to incorporate advanced energy efficient technologies. Not only does it comply with ENERGY STAR and RoHS, but its entire manufacturing process complies with strict environment regulations.
Advanced software improves workflow before and after scanning
The functions of PaperStream IP and PaperStream Capture, scanner driver and capture software for fi Series respectively, improves operators’ overall productivity, by reducing the number of operations before and after scanning.
For passport and ID card scanning, personal information such as full name, document number, nationality, contained in the MRZ* (Machine Readable Zone), can be extracted for efficient entry of customer information.
*Supports recognition of MRZ on passports and ID cards, as defined by the ICAO (International Civil Aviation Organization). Passport MRZ layout is defined as two rows of 44 characters each (Doc 9303 TD3 format). ID card MRZ layout defined as three rows of 30 characters (TD1 format) or as two rows of 36 characters (TD2 format).
Advanced software for work efficiency
Connect business workflow with PaperStream IP and PaperStream Capture
The PaperStream IP scanner driver, supporting both TWAIN/ISIS™, eliminates the need of making fine setting adjustments for OCR processes. It automatically converts images into exceptionally clean images, accelerating OCR even when scanning wrinkled, soiled and patterned documents.
With
an intuitive interface, PaperStream Capture allows users to feed information into their organization's workflow through various capture features during batch scanning effectively and efficiently. Data from sources such as barcodes or zonal OCR can be used as a part of file name, or
extracted for data retention and future use.
Utilize advanced optional capture software - PaperStream Capture Pro
A high-quality, front end scanning software, PaperStream Capture Pro, enhances fi Series scanners' superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing.
Specifications
| Product Name | fi-70F | |
|---|---|---|
| Scanner Type | Flatbed, Simplex | |
| Scanning Speed*1 (105 x 148 mm/4.1 x 5.8 in./A6) |
AC Adapter | Color: 1.3 seconds (200 dpi)/2.0 seconds (300 dpi) Grayscale/Monochrome: 0.9 seconds (200 dpi)/1.0 seconds (300 dpi) |
| USB Bus-Powered | Color: 2.0 seconds (200 dpi)/2.5 seconds (300 dpi) Grayscale/Monochrome: 2.0 seconds (200/300 dpi) |
|
| Image Sensor Type | CIS (CMOS CIS) | |
| Light Source | 3 Color LED | |
| Optical Resolution | 600 dpi | |
| Output Resolution (Color/Grayscale/Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*2 | |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | |
| Background Colors | Black | |
| Document Size | Maximum | 105 x 148 mm (4.1 x 5.8 in.) |
| Interface | USB 2.0/USB 1.1 | |
| Power Requirements | AC 100 to 240 V ±10 % | |
| Power Consumption (AC Adapter) | Operating Mode | 6 W or less |
| Sleep Mode | 2 W or less | |
| Auto Standby (Off) Mode | 0.3 W or less | |
| Power Consumption (USB Bus-Powered) | Operating Mode | 5 W or less |
| Sleep Mode | 2 W or less | |
| Auto Standby (Off) Mode | 0.3 W or less | |
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 80% (non-condensing) | |
| Environmental Compliance | ENERGY STAR, RoHS | |
| Dimensions*3 (W x D x H) | 145 x 234 x 40 mm (5.7 x 9.2 x 1.6 in.) | |
| Weight | 0.9 kg (1.98 lb) | |
| Supported Operating System | Windows 11*4, Windows 10*4, Windows Server 2022, Windows Server 2019, Windows Server 2016 | |
| Software/Drivers | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*5, PaperStream Capture, PaperStream ClickScan*6, Software Operation Panel, Scanner Central Admin Server | |
| Included Items | AC cable, AC adapter, USB cable, USB bus power cable, Setup DVD-ROM | |
-
Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:
- Windows 10/CPU: Intel Core™ i3-10105 3.7GHz/Memory: 8GB/Storage: SSD
- Some limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
- Protruding items are not included in indicated dimensions.
-
fi Series scanners do not run with Windows 11 and 10 ARM-based PCs.
- Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.
-
Refer to the fi Series Support Site for driver/software downloads and full lineup of all supported operating system versions.
Accessories
| Part Number | Description | |
|---|---|---|
| Options | ||
| PaperStream Capture Pro Scan Station (WG) |
PA43404-A665 | PaperStream Capture Pro optional license |
