Overview

Touchpoint for direct information sharing

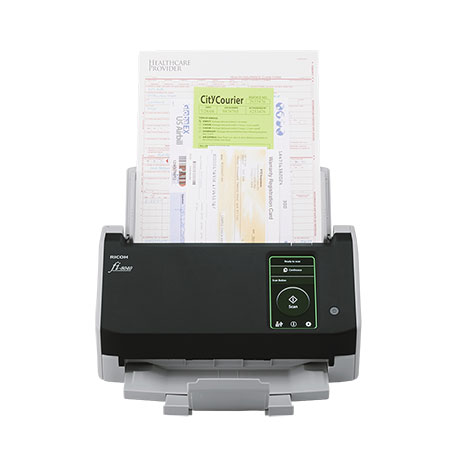

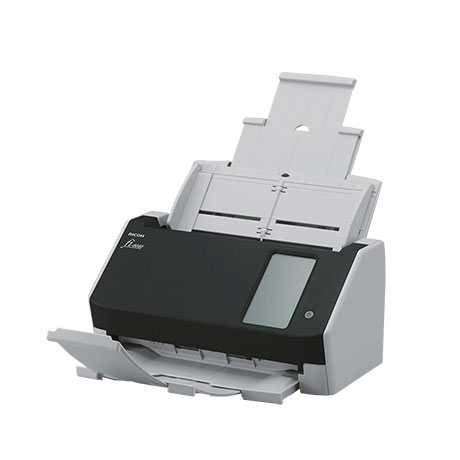

The fi-8040 offers new options to meet real-world productivity with "DirectScan" function with PC-less network compatibility. It enables PC-less scans and attaches the scans to emails directly. Despite being compact, the scanner achieves scan speeds of 40 ppm/80 ipm (200/300 dpi, color, A4 portrait), loads up to 50 sheets at a time, and comes equipped with a capability of scanning up to as many as 6,000 sheets a day.

• Comes with "DirectScan" function to enable PC-less scans and attaches the scans to emails directly
• User-friendly 4.3-inch touch screen to achieve better user experience
• Scan a wide variety of documents with just a switch to the Manual Feed Mode
• Supports both LAN and USB 3.2 connectivity
• Optimized high-quality image data with "PFU Clear Image Capture"
• Scanner Central Admin Desktop that enables setting DirectScan function to multiple scanners
• PaperStream IP and PaperStream Capture providing advanced image processing functions, with PaperStream Capture Pro software as a premium option
• PaperStream ClickScan for ad-hoc use

 Datasheet (1,317 KB)

•
•

Features

"DirectScan" breakthrough. PC-less scanning

Save scans directly to network folders

Equipped with the "DirectScan" function*, the fi-8040 enables PC-less scan and saves scanned data directly to network folders or FTP servers by setting destination storage locations in advance. The setting can be done easily with a web browser for a single unit or with the "Scanner Central Admin Desktop" software for multiple units. The scanner acts as a platform for business solutions to share data among multiple departments, work teams, and remote work environments.
*DirectScan function is available only when the time is synchronized with an NTP server.

Attach scans to e-mails directly and share with multiple users

Compact but equipped with a 4.3-inch touch screen, the scanner allows ease of designating recipients, attaching and sending scans, all from the touch screen. Filenames and sizes can be verified before sending. The fi-8040 is an ideal scanner for use with multiple users in office as well, for information sharing, as a possible replacement for the conventional fax.

Boosted usability and flexibility for any environment

User-friendly 4.3-inch touch screen for easy operation

Equipped with the touch screen on its compact body of the scanner, users are able to check scanned data before saving, attaching, and sending scans, all on the touch screen.

*Thumbnails of scanned data are shown for confirmation only when PC-less scanning.

Supports scanning of wide range of documents

The scanner handles various types of documents, including plastic cards and A3, bi-folded, and multi-layered documents without the need for a carrier sheet. Plastic cards up to a thickness of 0.7mm can be read as well.

Optimized high-quality image data for business use

Combining the new CIS sensor with the GI image processing engine suppresses the occurrence of color shifts. "PFU Clear Image Capture" produces high definition images for data extraction while keeping power consumption to the minimum and reduces startup times.

Advanced software for higher productivity

Connect business workflow with PaperStream IP and PaperStream Capture

The PaperStream IP scanner driver, supporting both TWAIN/ISIS™, eliminates the need of making fine setting adjustments for OCR processes. It automatically converts images into exceptionally clean images, accelerating OCR even when scanning wrinkled, soiled and patterned documents. With an intuitive interface, PaperStream Capture allows users to feed information into their organization's workflow through various capture features during batch scanning effectively and efficiently.

Specifications

Product Name		fi-8040
Scanner Type		ADF (Automatic Document Feeder)/Manual Feed, Duplex
Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3)	Simplex	40 ppm (200/300 dpi)
	Duplex	80 ipm (200/300 dpi)
Image Sensor Type		CIS x 2 (front x 1, back x 1)
Light Source		RGB LED x 2 (front x 1, back x 1)
Optical Resolution		600 dpi
Output Resolution*4 (Color/Grayscale/Monochrome)		50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format		Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors		White
Document Size	Maximum	216 x 355.6 mm (8.5 x 14 in.)
	Minimum	50.8 x 50.8 mm (2 x 2 in.)
	Long Page Scanning*6(Maximum)	5,588 mm (220 in.)
Paper Weight (Thickness)	Paper	40 to 209 g/m² (11 to 56 lb)*7
	Plastic Card	0.76 mm (0.0299 in.) or less*8
ADF Capacity*9*10		50 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume*11		6,000 sheets
Multifeed Detection		Overlap detection (Ultrasonic sensor), Length detection
Interface	USB	USB 3.2 Gen1x1/USB 3.0/USB 2.0/USB 1.1
	Ethernet	10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements		AC 100 to 240 V ±10 %
Power Consumption	Operating Mode	19 W or less
	Sleep Mode	1.9 W or less (Normal mode)
	Auto Standby (Off) Mode	0.15 W or less
Operating Environment	Temperature	5 to 35 °C (41 to 95 °F)
	Relative Humidity	20 to 80% (Non-condensing)
Environmental Compliance		ENERGY STAR, RoHS
Dimensions (W x D x H)*12		292 x 157 x 143 mm (11.5 x 6.2 x 5.6 in.)
Weight		3.1 kg (6.8 lb)
Supported Operating System		Windows 11*13, Windows 10*13, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS, Linux (Ubuntu)
Software/Drivers		PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver*14, PaperStream Capture, PaperStream ClickScan*15, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*15,Scanner Central Admin Server, Scanner Central Admin Desktop
Image Processing Functions*16		Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, Static threshold, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew,Edge filler, Vertical streaks reduction, Cropping, Rotation, Barcode detection (1D&2D), Background pattern removal.
Included Items		ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM

1. Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:

   • Windows 10/CPU: Intel Core^™ i3-10105 3.7GHz/Memory: 8GB/Storage: SSD
2. Indicated speeds are from using JPEG compression.
3. Indicated speeds are from using TIFF CCITT Group 4 compression.
4. Selectable maximum resolution may vary depending on the length of the scanned document.
5. Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
6. Capable of scanning documents longer than A4 (210 x 297 mm/8.3 x 11.7 in.) sizes. When using PaperStream IP (TWAIN/ISIS™) to scan at 200 dpi, the maximum scanning length is 5,588 mm (220 in.).
7. Thicknesses of up to 128 to 209 g/m2 (34 to 56 lb) can be scanned for A8 (52 x 74 mm/2.1 x 2.9 in.) sizes.
8. Multiple cards cannot be set continuously (Note: capable of scanning embossed cards).
9. Maximum capacity depends on paper weight and may vary.
10. Capable of setting additional documents while scanning.
11. Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability.
12. Excludes the ADF paper chute and stacker.
13. fi Series scanners do not run with Windows 11 and 10 ARM-based PCs.
14. Functions equivalent to those offered by PaperStream IP may not be available with the Image Scanner Driver for macOS/Linux or WIA Driver.
15. Refer to the fi Series Support Site for driver/software downloads and full lineup of all supported operating system versions.
16. Some functions do not apply when using the "DirectScan" function. Refer to the fi Series Support Site for the latest functions.

Supported Operating System of Server When Processing DirectScan

Server	Supported Operating System
File Server*1*2	Windows Server 2016 Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 9
FTP Server*1*3	Windows Server 2016: IIS, OpenSSH Windows Server 2019: IIS, OpenSSH Windows Server 2022: IIS, OpenSSH Red Hat Enterprise Linux 9: vsftpd, OpenSSH
SMTP Server*1	Windows Server 2016: Exchange Server Windows Server 2019: Exchange Server Windows Server 2022: Exchange Server Red Hat Enterprise Linux 9: Postfix

1. Resolve namespaces only with DNS protocol.
2. The supported SMB versions are SMB 2.0 to SMB 3.0.2. SMB encryption and DFS (Distributed File System) namespaces are not supported.
3. Scanning speed tends to slow down when data transfer is encrypted.

Accessories

	Part Number	Description
Consumables
Roller Set S (Brake Roller/Pick Roller)	PA03750-0001	Every 200,000 sheets or one year
Options
Carrier Sheets	PA03360-0013	Each package contains 5 carrier
PaperStream Capture Pro Scan Station (WG)	PA43404-A665	PaperStream Capture Pro optional license

*Recommends use of original or approved accessories for consumables, options and cleaning kits designed for your device.
Device failures, troubles and damages arising from use of OEM or 3rd Party accessories may render your warranty invalid and incur charges for repair even during the warranty period.

Warranty

Find out the details about your product's warranty and information on how to extend your warranty.
Warranty Information (Worldwide)
