Overview

Essential functions. Exceptional value.

Built for real-world business workflows, the RICOH SP-2230 combine essential scanning functions, reliable image quality, and intuitive operation in a compact design. Powered by trusted RICOH fi Series technology and seamlessly integrated with the PaperStream series, the models simplify everyday document digitization while helping businesses maximize the value of every scanned document across downstream workflows.

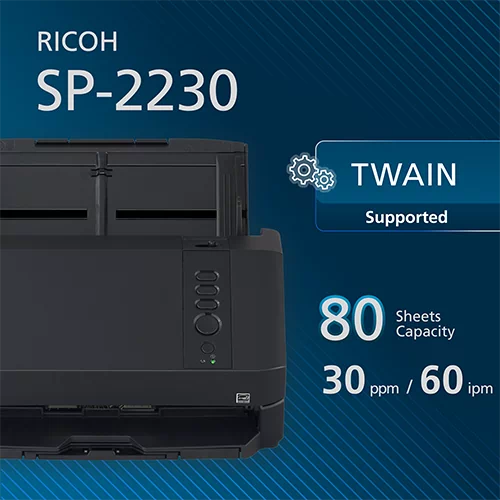

• Fast, productive scanning: 30 ppm/60 ipm with an 80-sheet ADF
• Built for everyday business workflows: Focuses on the essential scanning functions businesses use most, helping reduce unnecessary configuration and training

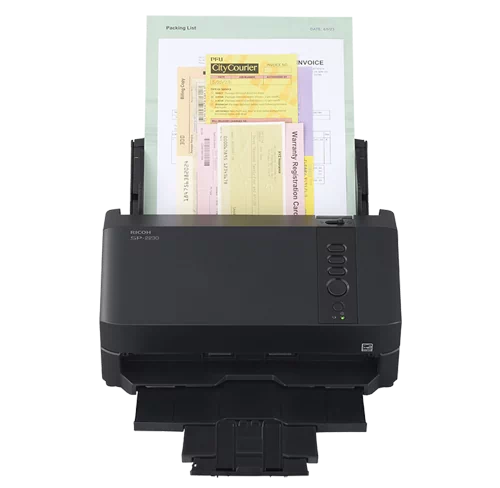

• Versatile document handling: Supports standard business documents, plastic cards, and folded A3 documents
• Advanced image quality: PFU Clear Image Capture technology delivers clear, consistent image data for more accurate OCR and smoother downstream processing
• PaperStream ClickScan: Easy digitization via right-click menu or scan-button
• Seamless PaperStream integration: Extends document capture from image enhancement and data extraction to downstream business processes, helping maximise the value of every scanned document

•
•

Features

Essential performance for everyday business

Built for the document workflows businesses handle every day, the RICOH SP-2230 combine reliable performance with the essential functions teams need to stay productive. Scan at speeds of up to 30ppm, with an 80-sheet ADF for efficient batch scanning. Versatile document handling supports standard business documents, plastic cards, and folded A3 documents, while the compact design fits easily into space-limited work environments. Straightforward setup and operation also make it easier to deploy a consistent scanning experience across teams.

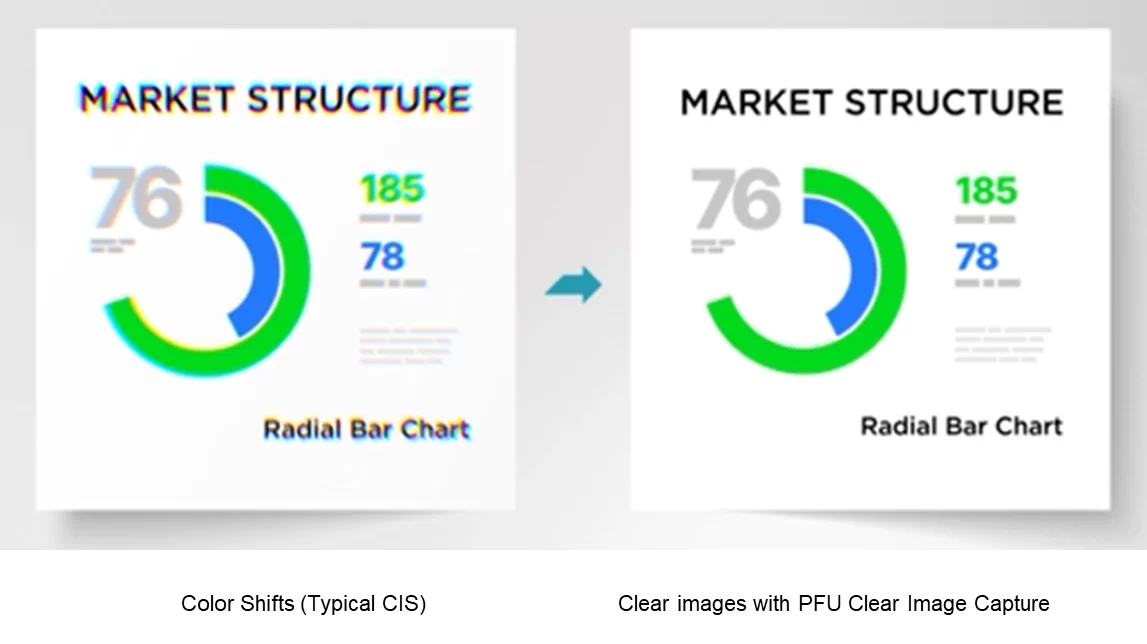

High-quality images for more accurate data capture

Turn paper documents into clean, accurate, and usable digital information. Powered by PFU Clear Image Capture technology, the scanners deliver high-quality image data that supports accurate OCR and faster data extraction, helping reduce manual corrections and rework. Intelligent image processing, including automatic paper size detection and automatic rotation, optimises scanned images automatically across different document types and orientations. Better input quality means fewer manual interventions and smoother downstream processing.

Simple scanning, seamless digitisation

Make everyday digitisation fast and intuitive with PaperStream ClickScan. Users can start scanning directly from a right-click menu or with a single press of the scanner's on-device button, making routine tasks simple for users of all experience levels. Seamless integration with the PaperStream series takes digitisation beyond scanning, connecting image enhancement and data extraction with downstream business processes. This creates a more streamlined document workflow and helps businesses maximise the value of every scanned document.

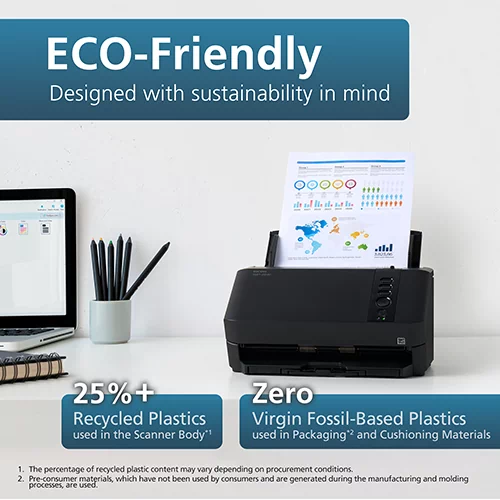

Environmentally Conscious Design

Recycled plastic is over 25% of the main unit's resin weight. We also use recycled plastics* and pulp molds for packaging and cushioning materials when transporting products, achieving zero use of virgin plastics derived from fossil resources. These contribute to reducing plastic waste.

*Pre-consumer materials, which have not been used by consumers and are generated during the manufacturing and molding processes, are used.
Learn More
For more details on our eco-friendly initiatives, please see RICOH Image Scanners Environment.

Specifications

As of October 6, 2026

Product Name		SP-2230
Scanner Type		ADF (Automatic Document Feeder)/Manual Feed, Duplex
Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3)	Simplex	30 ppm (200/300 dpi) 13 ppm (400/600 dpi)
	Duplex	60 ipm (200/300 dpi) 26 ipm (400/600 dpi)
Image Sensor Type		CIS x 2 (front x 1, back x 1)
Light Source		RGB LED x 2 (front x 1, back x 1)
Optical Resolution		600 dpi
Output Resolution*4 (Color/Grayscale/Monochrome)		50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format		Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors		White
Document Size	Maximum*6	215.9 x 355.6 mm (8.5 x 14 in.)
	Minimum	50.8 x 50.8 mm (2.0 x 2.0 in.)
	Long Page Scanning*7	6,096 mm (240 in.) (up to 200 dpi)
Paper Weight (Thickness)	Paper	27 to 413 g/m² (7.2 to 110 lb)*8
	Plastic Card*9	1.4 mm (0.055 in.) or less
ADF Capacity*10*11		80 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume*12		4,500 sheets
Multifeed Detection		Overlap detection (Ultrasonic sensor), Length detection
Paper Protection		Lag detection
Interface	USB	USB 3.2 Gen1x1/USB 3.0/USB 2.0/USB 1.1 (Connector Type: Type-C)
Power Requirements		AC 100 to 240 V ±10 %
Power Consumption	Operating Mode	15 W
	Sleep Mode	1.4W or less
	Auto Standby (Off) Mode	0.2W or less
Operating Environment	Temperature	5 to 35°C (41 to 95°F)
	Relative Humidity	15 to 80%
Environmental Compliance		ENERGY STAR, RoHS, EPEAT
Dimensions*13 (Width x Depth x Height)		292 x 163 x 150 mm (11.5 x 6.4 x 5.9 in.)
Weight		3.3 kg (7.3 lb)
Supported Operating System		Windows 11*14, Windows 10*14, Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016
Software/Drivers*15		PaperStream IP Driver (TWAIN/TWAIN x64), WIA Driver*16, PaperStream Capture Series, PaperStream ClickScan, Searchable PDF Option, Software Operation Panel, Error Recovery Guide, PaperStream Central Admin, SP Series Online Update, Manual Installer
Image Processing Functions		Multi image output, Automatic color detection, Blank page detection & deletion, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, Static threshold, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Split image, De-Skew, Edge filler, Edge repair, Vertical streaks reduction, Cropping, Automatic rotation, Barcode detection (1D&2D), Background pattern removal, Front/Back merging
Included Items		ADF paper chute, AC cable, AC adapter, USB 2.0 cable

1. Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:

   • Windows 11/CPU: Intel Core™ i3-13100 4.5GHz/Memory: 8GB/Storage: SSD
2. Indicated speeds are from using JPEG compression.
3. Indicated speeds are from using TIFF CCITT Group 4 compression.
4. Selectable maximum resolution may vary depending on the length of the scanned document.
5. Some limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
6. Maximum document width possible for scanning is 240 mm (9.5 in).
7. The capable scanning size varies depending on the resolution.
8. Thicknesses of 128 to 209 g/m² (34 to 56 lb) can be scanned for A8 (52 × 74 mm / 2.1 × 2.9 in.) sizes. Documents with a paper weight over 209 g/m² (56 lb) can only be fed one sheet at a time.
9. Compliant with ISO7810 ID-1 type. All cards, including embossed and non-embossed types, are in landscape orientation.
10. Maximum capacity depends on paper weight and may vary.
11. Capable of setting additional documents while scanning.
12. Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability.
13. Excludes the ADF paper chute and stacker.
14. Supports ARM-based Windows 11 PCs with the 32-bit version of the PaperStream IP (TWAIN) driver only. Not supported on ARM-based Windows 10 PCs.
15. Refer to the SP Series Support Site for driver/software downloads and full lineup of all supported operating system versions.
16. Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.

Accessories

	Part Number	Description
Consumables
Brake Roller	PA03880-0001	Every 200,000 sheets*1
Pick Roller	PA03880-0002	Every 200,000 sheets*1
Options
Carrier Sheets	PA03360-0013	Pack of 5 sheets
Photo Carrier Sheets	PA03770-0015	Pack of 3 sheets
PaperStream Capture Pro	PA43404-B403	One year license
PaperStream Capture Pro Premium	PA43404-B421	One year license

1. Replacement cycles are guidelines for using A4 documents (80 g/m² [20 lb]). These cycles vary depending on the type of documents scanned, how often the scanner is used and cleaned, and your operating environment.

Recommends use of original or approved accessories for consumables, options and cleaning kits designed for your device.
Device failures, troubles and damages arising from use of OEM or 3rd Party accessories may render your warranty invalid and incur charges for repair even during the warranty period.

Warranty

Find out the details about your product's warranty and information on how to extend your warranty.
Warranty Information (Worldwide)
