Sending a Scanned Image via an E-mail Directly from the ScanSnap

By using ScanSnap Cloud, send an image created from the document that you scanned to the e-mail address which you registered in a profile in advance.

If you create a profile that has an e-mail address set for the e-mail destination and an e-mail subject, you can send a scanned image directly from the ScanSnap via e-mail without using a computer.

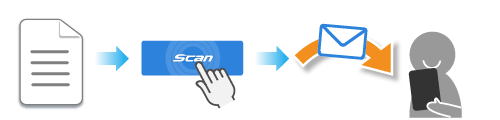

Overview Image

To use ScanSnap Cloud, you need to register a ScanSnap account then sign in to the ScanSnap Cloud service.

For details, refer to Signing in to the ScanSnap Cloud service with a ScanSnap account.

For regions where ScanSnap Cloud can be used, refer to here.

HINT

Up to 300 e-mails can be sent per month.
An e-mail address specified for the destination needs to be set to receive e-mails from the domain "@mail.cloud.scansnap.com".

This section explains how to scan basic documents and send the scanned images via an e-mail from the ScanSnap.

For details about how to scan various documents, refer to How to Scan Documents.

Prepare documents to be scanned with the ScanSnap.
Open the ADF paper chute (cover) of the ScanSnap to turn the power on. Hold the right side of the ADF paper chute (cover) of the ScanSnap then open it or press the [Scan] button to turn it on. Open the feed guide of the ScanSnap to turn the power on.
Connect the ScanSnap to a wireless access point.
When the ScanSnap is connected to a wireless access point, proceed to the next step.
1. Press in the home screen on the touch panel of the ScanSnap to display the [Settings] screen.
2. Press to display the [Wi-Fi settings] screen.
3. Check that [Wi-Fi connect mode] is set to [Access point connection].
4. Press [Access point connection].
5. Press [Access point connect settings] and connect the ScanSnap to a wireless access point by following the instructions shown on the screen.
6. After a connection to the wireless access point is established, press to display the home screen.
Prepare a profile in ScanSnap Home.
1. Click the [Scan] button at the top of the Main Window of ScanSnap Home to display the Scan Window.

  Windows

  If the main window is not already displayed, refer to To Display the Main Window.

  Mac OS

  If the main window is not already displayed, click the [ScanSnap Home] icon in the application list that appears when you click Launchpad in the Dock.
2. Click to display the [Add new profile] Window (When Using ScanSnap Cloud).
3. Select [Email Directly] from the template list.
  If necessary, change other scan settings.
4. Click the [Email setting] button for [Cloud Service].
  Windows
  In the [Email setting] window, set an e-mail address for an e-mail destination and a subject of an e-mail.

  HINT

  Up to 10 e-mail addresses can be set for [To].

  If the e-mail address is wrong, is displayed at the beginning of the e-mail address. Enter the correct e-mail address.

  Up to 255 characters can be set for [Subject].

  Clicking the [Save] button saves the settings for sending an e-mail and returns to the [Add new profile] window.
  Mac OS
  In the window that appears, set an e-mail address for an e-mail destination and a subject of an e-mail.

  HINT

  Up to 10 e-mail addresses can be set for [To].

  If the e-mail address is wrong, is displayed at the beginning of the e-mail address. Enter the correct e-mail address.

  Up to 255 characters can be set for [Subject].

  Clicking the [Save] button saves the settings for sending an e-mail and returns to the [Add new profile] window.
5. Click the [Add] button to add this profile to the profile list in the scan window.
In the home screen on the touch panel, select the profile that you added in step 4 from the profile list.
Scan a document with the ScanSnap.
1. Pull out the extension and the stacker on the ADF paper chute (cover).
2. Load a document in the ADF paper chute (cover).

  Load the document face-down and head-first with the back facing you (when loading multiple documents, the last page is on the top).

  Adjust the number of documents so that they do not go beyond within the side guides when they are loaded.
3. Align the side guides with both ends of the document.

  Hold each side guide in the middle to adjust them. Otherwise, the document may be fed skewed during scanning.
4. Press the [Scan] button.
  Read the confirmation message and click the [Yes] button.

The image created from the document that you scanned is sent via an e-mail.
