Scanning Documents and Checking the Scanned Images in Acrobat or Power PDF

After scanning documents, start up Acrobat, Power PDF, or PDF Converter and check the images created from the documents that you scanned.

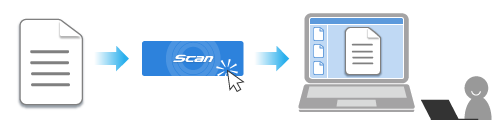

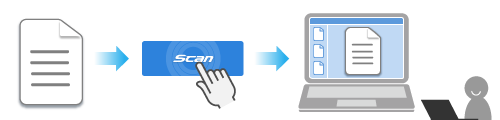

Overview Image

This section explains how to scan basic documents and open images created from the documents that you scanned in Acrobat.

For details about how to scan various documents, refer to How to Scan Documents.

HINT

Images created from documents that you scanned cannot be managed in ScanSnap Home. The scanned images are saved in the folder below.

Windows
[Documents] under <UserName> of the operating system

Mac OS
/Users/<UserName>/Documents

Prepare a document to be scanned with the ScanSnap.
Open the ADF paper chute (cover) of the ScanSnap to turn the power on. Hold the right side of the ADF paper chute (cover) of the ScanSnap then open it or press the [Scan] button to turn it on. Open the feed guide of the ScanSnap to turn the power on.

Open the ADF paper chute (cover) fully so that the [Scan] button lights up in blue.

When the ADF paper chute (cover) is opened, the extension will rise automatically.
Open the ADF paper chute (cover) of the ScanSnap to turn the power on. Hold the right side of the ADF paper chute (cover) of the ScanSnap then open it or press the [Scan] button to turn it on. Open the feed guide of the ScanSnap to turn the power on.
HINT
- If you want the document to be ejected from the front of the ScanSnap or when there is not enough space where the document exits the ScanSnap, open the output guide.
- How the document is ejected differs as below depending on whether the output guide is open or closed.

  When the output guide is closed

  When the output guide is open
Press the [Scan] button or [Stop] button on the ScanSnap to turn the power on.
Prepare a profile in ScanSnap Home.
1. Click the [Scan] button at the top of the Main Window of ScanSnap Home to display the Scan Window.

  Windows

  If the main window is not already displayed, refer to To Display the Main Window.

  Mac OS

  If the main window is not already displayed, click the [ScanSnap Home] icon in the application list that appears when you click Launchpad in the Dock.
2. Click to display the [Add new profile] Window.
3. Select [Scan to Acrobat(R)] from the template list.
  If necessary, change the scan settings.
  HINT
  If you open an image created from the document that you scanned in Power PDF or PDF Converter, select [Scan to Power PDF].
4. Click the [Add] button to add this profile to the profile list in the scan window.
In the home screen on the touch panel, select the profile that you added in step 3 from the profile list.
Check that the profile that you added in step 3 is selected in the profile list in the scan window.
Scan a document with the ScanSnap.

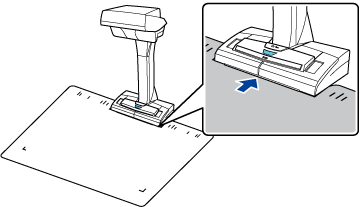

1. Place the Background Pad on the front side of the ScanSnap.
  Place the Background Pad so that it is in contact with the ScanSnap.
2. Place the document in the scan area of the ScanSnap.
  For details about the scan area, refer to Placing a Document.
3. Press the [Scan] button to start scanning the document.
  To continue scanning, place the next document to be scanned and press the [Scan] button.
  ATTENTION
  Do not cover the white sheets on the ScanSnap with your hands or with something else while scanning a document. The color reproducibility of the scanned image will be affected.

  Do not shake the table or desk when the ScanSnap is being used or move the document while it is being scanned. Doing so may distort the scanned image or blur the color.
  HINT
  The timed mode enables you to scan documents automatically without pressing the [Scan] button. For details, refer to Scanning Documents Using Timed Mode.
4. Press the [Stop] button to finish scanning the document.
5. Select a method to save scanned images in the [ScanSnap Home - Image scanning and file saving] window of ScanSnap Home.
  Select [Crop and save flat document images as-is] and then click the [Save this image] button.
  HINT
  Click the [Check/Correct] button in the [ScanSnap Home - Image scanning and file saving] window to correct the scanned image.

  For details, refer to the following:

  Correcting the Document Orientation

  Modifying the Crop Area of a Document

  Filling in the Captured Finger Areas in the Scanned Image of a Document
6. Pull out the extension and the stacker on the ADF paper chute (cover).
7. Pull the stacker towards you.
8. Pull out the extension.
9. Insert the document straight into the feeding section of the ScanSnap, with the scanning side facing up.
  Make sure that the document is fed into the ScanSnap and is held firmly.
  HINT
  When you perform a scan with the output guide closed, leave enough space at the back of the ScanSnap to allow the document to be completely ejected. In addition, when you scan a long page document, hold the document that you scanned with your hands to prevent them from falling off the base where the ScanSnap is placed on.

  Make sure that the area where the document exits the scanner is clear of any obstacles. Otherwise, a paper jam may occur.
10. Load the document in the ADF paper chute (cover).

  Load the document face-down and head-first with the back facing you (when loading multiple documents, the last page is on the top).

  Adjust the number of documents so that they do not go beyond within the side guides when they are loaded.

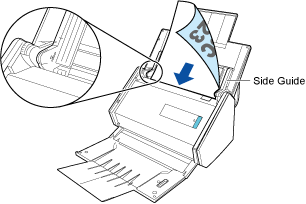

11. Align the side guides with both ends of the document.

  Hold each side guide in the middle to adjust them. Otherwise, the document may be fed skewed during scanning.
12. Pull out the extension on the ADF paper chute (cover) and open the stacker.
13. Load the document in the ADF paper chute (cover).

  Load the document face-down and head-first with the back facing you (when loading multiple documents, the last page is on the top).

  Adjust the number of documents so that they do not go beyond the reference marks and are kept within the side guides when they are loaded.
14. Align the side guides with both ends of the document.

  Hold each side guide in the middle to adjust them. Otherwise, the document may be fed skewed during scanning.
15. Load the document in the ADF paper chute (cover).

  Load the document face-down and head-first with the back facing you (when loading multiple documents, the last page is on the top). Adjust the number of documents so that they do not go beyond the reference marks and are kept within the side guides when they are loaded.
16. Align the side guides with both ends of the document.

  Hold each side guide in the middle to adjust them. Otherwise, the document may be fed skewed during scanning.
17. Load the documents in the ADF paper chute (cover) or insert the document into the manual feeder.
  - When scanning documents all at once (U-turn Scan)

    Load the documents in the ADF paper chute (cover), and align the side guides with both ends of the documents.

    Load the document face-up and head-first with the front facing you (when loading multiple documents, the first page is on the top).

    Hold each side guide in the middle to adjust them. Otherwise, the documents may be fed skewed.
    ATTENTION

    Make sure that the document support tab is open.

    Otherwise, a paper jam may occur.

    If the document support tab is closed, pull it up with your fingers.

    If the document support tab comes off, contact the distributor/dealer where you purchased this product.
  - When scanning documents one by one (Return Scan)

    Insert a document into the manual feeder.

    Face the front side of a document upwards and insert the top end of the document straight into the middle of the manual feeder.

    Make sure that the document is fed into the ScanSnap and is held firmly.
    ATTENTION

    The document comes out from the back of the ScanSnap during the scan.

    Leave space (about the length of the document) at the back of the ScanSnap.
    HINT

    You can scan a document with the ADF paper chute (cover) closed.
18. Press the [Scan] button.

  After scanning is complete, if the message "Load the next document." is displayed, you can continue scanning.

  To finish scanning, click the [Finish Scanning] button or press the [Scan] button on the ScanSnap.
19. Press the [Scan] button. Press the [Scan] button.
20. Press the [Scan/Stop] button to start scanning the document.

  To continue scanning, insert the next document to be scanned. When the document is inserted, scanning starts automatically.
21. Press the [Scan/Stop] button to finish scanning the document.

Acrobat starts up, and the image created from the document that you scanned is displayed.

When you scan different types of documents all at once with the setting configured to detect document types automatically, each scanned image is saved as a different image file, and all the saved files are opened in Acrobat.
